SKU: M-S-UCFC210D1-NTN

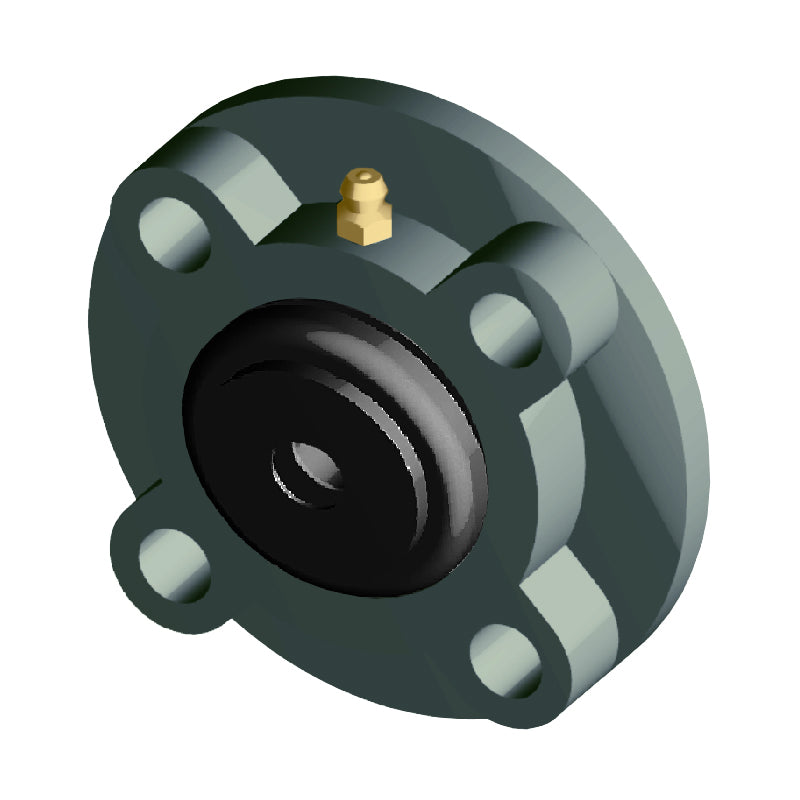

NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€55.14
4
€52.04
9
€51.42
19
€50.80
49
€50.18
99
€49.56
499
€46.46
999
€45.84
1999
€45.22
2999
€44.60
4999
€43.37
SKU:
M-S-UCFC210D1-NTN
NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
- Regular price
- €61.95 ex VAT
- Sale price
- €61,95
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| L | = | 165mm |
| J | = | 138mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 97.6mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 10mm | |
| N | = | 16mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 12mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| A | = | 40mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 110mm | |
| B | = | 51.6mm |
| S | = | 19mm |
| A< | = | sub> |
| 4< | = | /sub> |
| = | 65.5mm | |
| Fixing bolt | = | M14 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 39 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 23.2 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.82 kN | |
| --- | = | Unit information |
| Mass | = | 3.1 kg |
