NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days

SKU: M-UCC210D1-NTN

NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days

€56.68 ex VAT
€56,68
ex VAT
Not in stock

Quantity Price Breaks

3 €50.45
4 €47.61
9 €47.04
19 €46.48
49 €45.91
99 €45.34
499 €42.51
999 €41.94
1999 €41.38
2999 €40.81
4999 €39.68
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
SKU: M-UCC210D1-NTN

NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days

€56.68 ex VAT
€56,68
ex VAT

Description

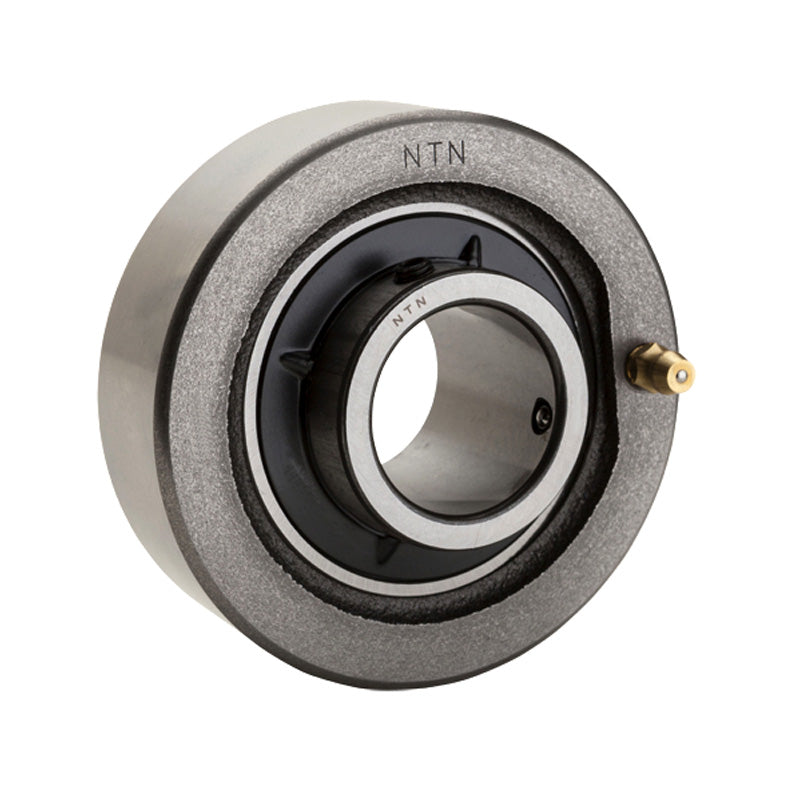

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Shaft diameter = 50mm
H = 120mm
A = 33mm
r = 2.5mm
B = 51.6mm
S = 19mm
Mass = 1.9 kg
