SKU: M-UCFH205D1-NTN

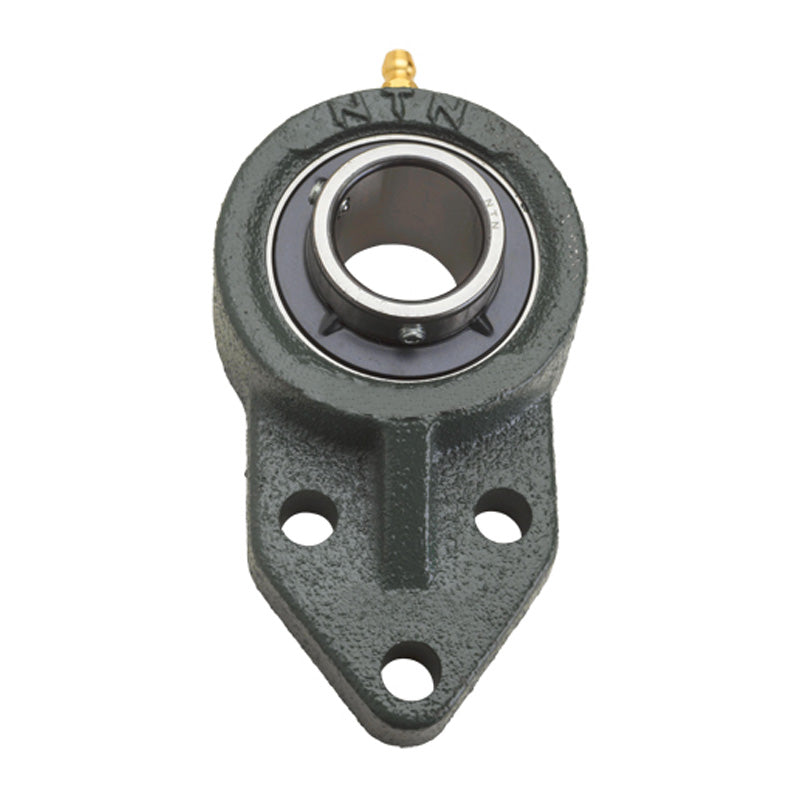

NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
In stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
M-UCFH205D1-NTN
NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 25mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 116mm | |
| J | = | 34mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 13mm | |
| A | = | 27mm |
| N | = | 10mm |
| H | = | 45mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 56mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 52mm | |
| L | = | 68mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 35.8mm | |
| B | = | 34.1mm |
| S | = | 14.3mm |
| Fixing bolt | = | M8 |
| Mass | = | 0.7 kg |
