SKU: MFC1.1/4-RHP

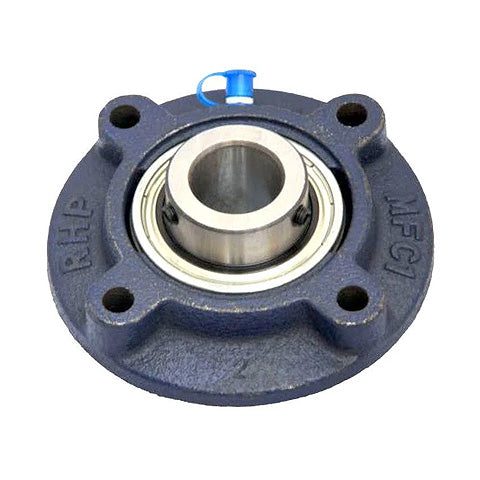

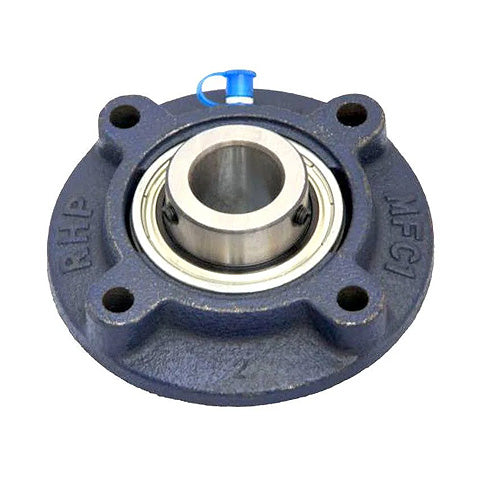

RHP MFC1-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
- Regular price
- €104.31 ex VAT
- Sale price
- €104,31
- Regular price
-
In stock
Quantity Price Breaks
10
€92.84
20
€87.62
30
€86.58
40
€85.53
50
€84.49
75
€83.45
100
€78.23
200
€77.19
250
€76.15
500
€75.10
1000
€73.02
SKU:
MFC1.1/4-RHP
RHP MFC1-1/4 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
- Regular price
- €104.31 ex VAT
- Sale price
- €104,31
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-1/4 inch |
| L | = | 5 inch |
| H | = | 3.375 inch |
| J | = | 4.125 inch |
| G | = | 0.375 inch |
| A1 | = | 1.312 inch |
| A4 | = | 0.748 inch |
| A5 | = | 0.252 inch |
| B | = | 1.688 inch |
| s | = | 0.69 inch |
| d1 | = | 1.838 inch |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-1-1/4G+insonly" |
| > | = | 1035-1-1/4G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
