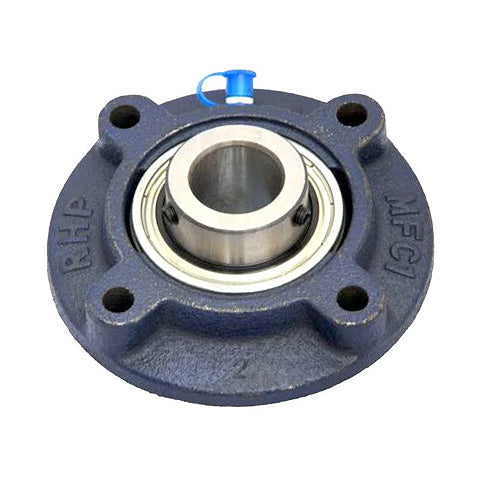

RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert
SKU: MFC1.3/16-RHP

RHP MFC1-3/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/16 inch Insert

€97.37 ex VAT
€97,37
ex VAT

Description

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

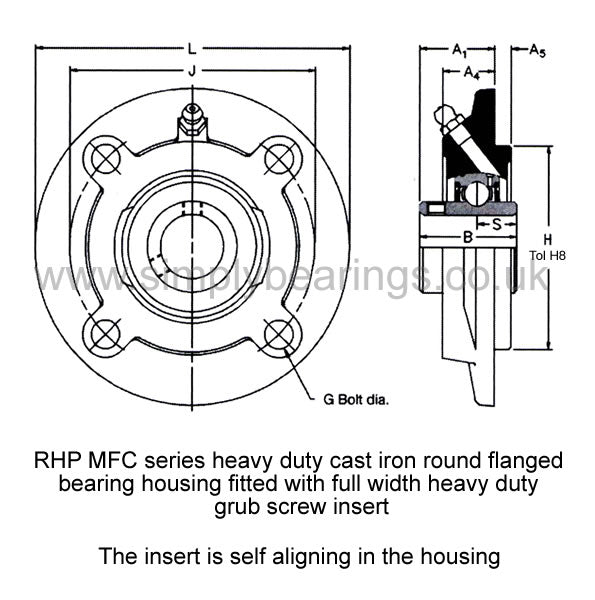

Technical

Bore = 1-3/16 inch
L = 5 inch
H = 3.375 inch
J = 4.125 inch
G = 0.375 inch
A1 = 1.312 inch
A4 = 0.748 inch
A5 = 0.252 inch
B = 1.688 inch
s = 0.69 inch
d1 = 1.838 inch
Dynamic load = 25700 N
Static load = 15300 N
Rec max speed = 4500 rpm
Weight = 1.5 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1035-1-3/16G+insonly"
> = 1035-1-3/16G Click Here<
/a> =
Casting group = 2
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
