SKU: MFC1.7/16-RHP

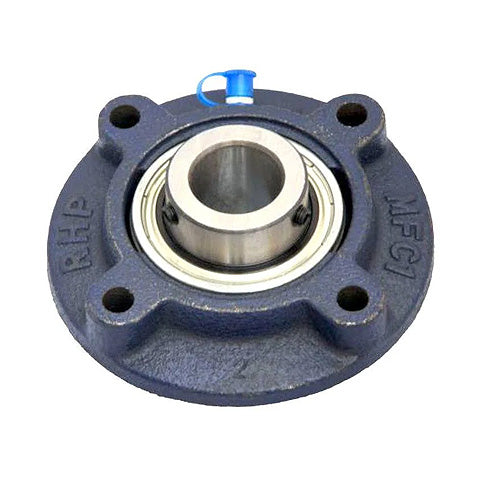

RHP MFC1-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
- Regular price
- €108.74 ex VAT
- Sale price
- €108,74
- Regular price
-
Not in stock
Quantity Price Breaks
10
€96.78
20
€91.34
30
€90.25
40
€89.17
50
€88.08
75
€86.99
100
€81.56
200
€80.47
250
€79.38
500
€78.29
1000
€76.12
SKU:
MFC1.7/16-RHP
RHP MFC1-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
- Regular price
- €108.74 ex VAT
- Sale price
- €108,74
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-7/16 inch |
| L | = | 5.252 inch |
| H | = | 3.625 inch |
| J | = | 4.375 inch |
| G | = | 0.375 inch |
| A1 | = | 1.5 inch |
| A4 | = | 0.748 inch |
| A5 | = | 0.252 inch |
| B | = | 1.938 inch |
| s | = | 0.752 inch |
| d1 | = | 2.075 inch |
| Dynamic load | = | 32500 N |
| Static load | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 1.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1040-1-7/16G+insonly" |
| > | = | 1040-1-7/16G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
