SKU: MFC1-RHP
RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
- Regular price
- €88.21 ex VAT
- Sale price
- €88,21
- Regular price
-
In stock
Quantity Price Breaks
10
€78.51
20
€74.10
30
€73.21
40
€72.33
50
€71.45
75
€70.57
100
€66.16
200
€65.28
250
€64.39
500
€63.51
1000
€61.75
SKU:
MFC1-RHP

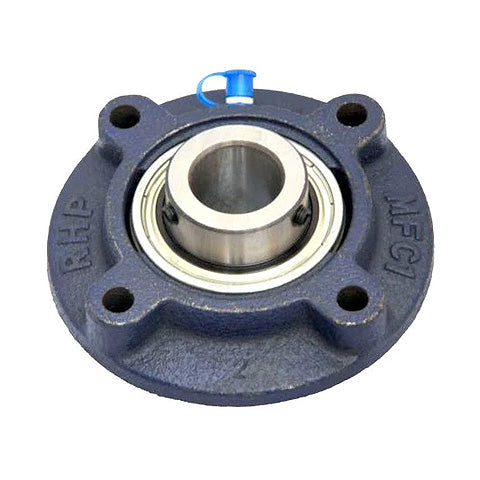

RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
- Regular price
- €88.21 ex VAT
- Sale price
- €88,21
- Regular price
-
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1 inch |
| L | = | 4.374 inch |
| H | = | 3 inch |
| J | = | 3.625 inch |
| G | = | 0.3125 inch |
| A1 | = | 1.312 inch |
| A4 | = | 0.827 inch |
| A5 | = | 0.252 inch |
| B | = | 1.5 inch |
| s | = | 0.627 inch |
| d1 | = | 1.575 inch |
| Dynamic load | = | 19500 N |
| Static load | = | 11300 N |
| Rec max speed | = | 5300 rpm |
| Weight | = | 1.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1030-1G+insonly" |
| > | = | 1030-1G Click Here< |
| /a> | = | |
| Casting group | = | 1 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
