RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert

SKU: MFC100-RHP

RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert

€872.98 ex VAT
€872,98
ex VAT
Not in stock

Quantity Price Breaks

10 €776.95
20 €733.30
30 €724.57
40 €715.84
50 €707.11
75 €698.38
100 €654.74
200 €646.01
250 €637.28
500 €628.55
1000 €611.09
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert
SKU: MFC100-RHP

RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert

€872.98 ex VAT
€872,98
ex VAT

Description

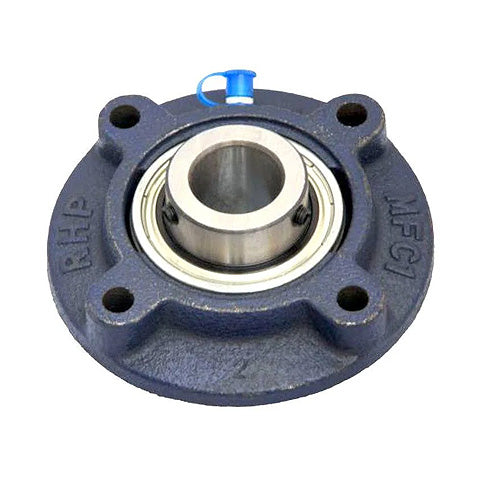

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 100mm
L = 298.4mm
H = 228.6mm
J = 260.35mm
G = 20mm
A1 = 88.9mm
A4 = 46mm
A5 = 12.7mm
B = 117.48mm
s = 49.27mm
d1 = 130.43mm
Dynamic load = 157000 N
Static load = 122000 N
Rec max speed = 1600 rpm
Weight = 17.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=3095-100G+insonly"
> = 3095-100G Click Here<
/a> =
Casting group = 11
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
