SKU: MFC2R-RHP

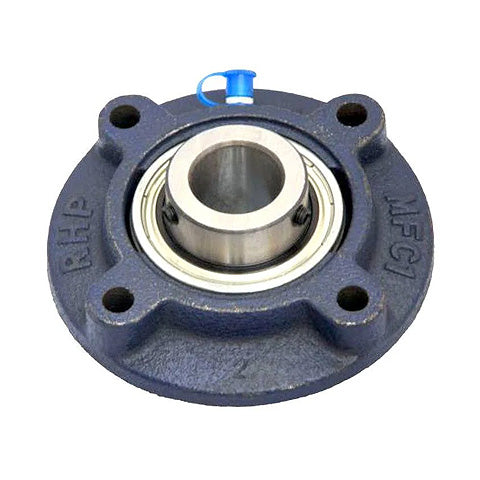

RHP MFC2R Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
- Regular price
- €135.83 ex VAT
- Sale price
- €135,83
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| L | = | 6.126 inch |
| H | = | 4.25 inch |
| J | = | 5.125 inch |
| G | = | 0.4375 inch |
| A1 | = | 1.562 inch |
| A4 | = | 0.748 inch |
| A5 | = | 0.252 inch |
| B | = | 2.031 inch |
| s | = | 0.752 inch |
| d1 | = | 2.449 inch |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-2G+insonly" |
| > | = | 1050-2G Click Here< |
| /a> | = | |
| Casting group | = | 4 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
