RHP MFC3-15/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-15/16 inch Insert

SKU: MFC3.15/16-RHP

RHP MFC3-15/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-15/16 inch Insert

€926.05 ex VAT
€926,05
ex VAT
Not in stock

Quantity Price Breaks

10 €824.18
20 €777.88
30 €768.62
40 €759.36
50 €750.10
75 €740.84
100 €694.54
200 €685.28
250 €676.02
500 €666.76
1000 €648.24
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MFC3-15/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-15/16 inch Insert
SKU: MFC3.15/16-RHP

RHP MFC3-15/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-15/16 inch Insert

€926.05 ex VAT
€926,05
ex VAT

Description

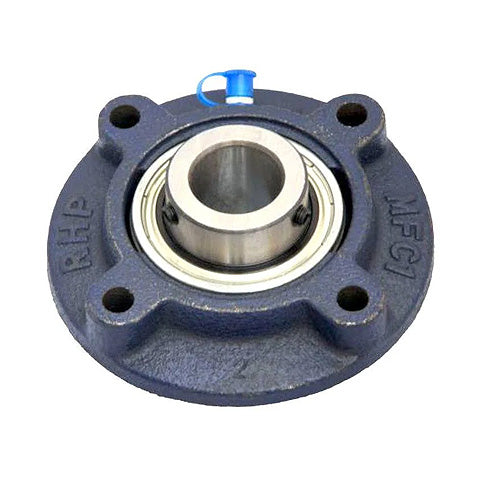

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 3-15/16 inch
L = 11.748 inch
H = 9 inch
J = 10.25 inch
G = 0.75 inch
A1 = 3.5 inch
A4 = 1.811 inch
A5 = 0.5 inch
B = 4.625 inch
s = 1.94 inch
d1 = 5.135 inch
Dynamic load = 157000 N
Static load = 122000 N
Rec max speed = 1600 rpm
Weight = 17.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=3095-3-15/16G+insonly"
> = 3095-3-15/16G Click Here<
/a> =
Casting group = 11
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
