RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

SKU: MFC35-RHP

RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

€102.51 ex VAT
€102,51
ex VAT
In stock

Quantity Price Breaks

10 €91.23
20 €86.11
30 €85.08
40 €84.06
50 €83.03
75 €82.01
100 €76.88
200 €75.86
250 €74.83
500 €73.81
1000 €71.76
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
SKU: MFC35-RHP

RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

€102.51 ex VAT
€102,51
ex VAT

Description

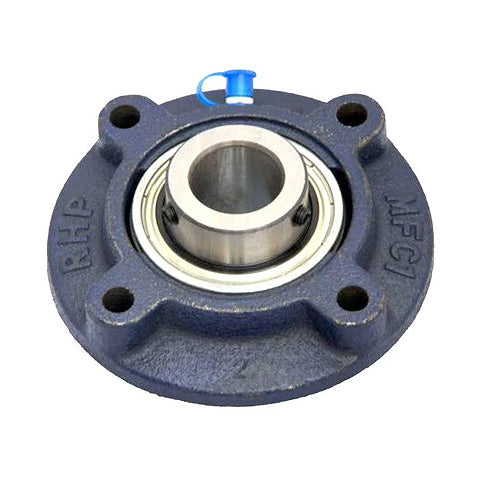

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing ,heavy duty full width bearing insert

Technical

Bore = 35mm
L = 133.4mm
H = 92.07mm
J = 111.12mm
G = 10mm
A1 = 38.1mm
A4 = 19mm
A5 = 6.4mm
B = 49.23mm
s = 19.1mm
d1 = 52.7mm
Dynamic load = 32500 N
Static load = 19900 N
Rec max speed = 4000 rpm
Weight = 1.9 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1040-35G+insonly"
> = 1040-35G Click Here<
/a> =
Casting group = 3
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
