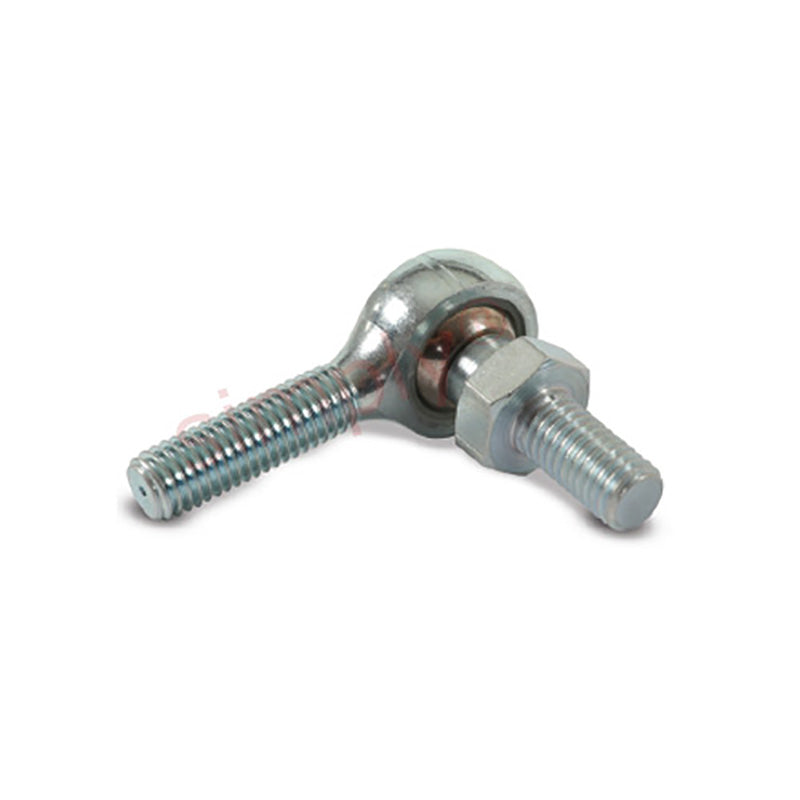

Branded MP-M12S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

SKU: MP-M12S-MB

Branded MP-M12S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

€22.25 ex VAT
€22,25
ex VAT
In stock

Quantity Price Breaks

10 €19.80
19 €18.69
29 €18.47
39 €18.25
49 €18.02
74 €17.80
99 €16.69
199 €16.47
249 €16.24
499 €16.02
999 €15.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-M12S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread
SKU: MP-M12S-MB

Branded MP-M12S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M12x1.75 Thread

€22.25 ex VAT
€22,25
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

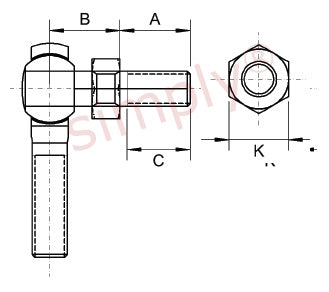

Technical

Stud size = M12
Thread = M12x1.75
A = 24mm
B = 24mm
C = 21mm
K = 19mm
Static load = 5720 N
