SKU: MPL-M08 SS-MB

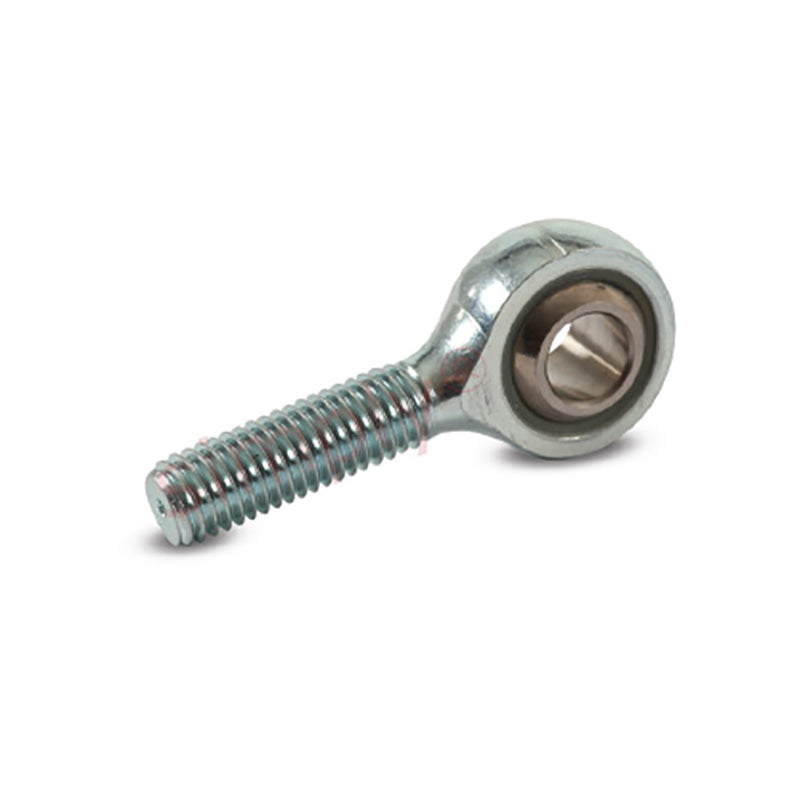

Branded MPL-M08 Left Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
Quantity Price Breaks
Branded MPL-M08 Left Hand Metric Stainless Steel / Nylon Lined Maintenance Free Plain Male Rod End M8x1.25 Thread
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
Description
|
MP Series Stainless Steel Nylon Lined Maintenance Free Male Rod Ends: These stainless steel MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. |
Technical
| Bore size | = | 8mm |
| Thread | = | M8x1.25 |
| W | = | 12mm |
| H | = | 9mm |
| D | = | 22mm |
| L1 | = | 42mm |
| L2 | = | 25mm |
| O | = | 10.4mm |
| Static load | = | 12775 N |
