SKU: MPL-M10-MB

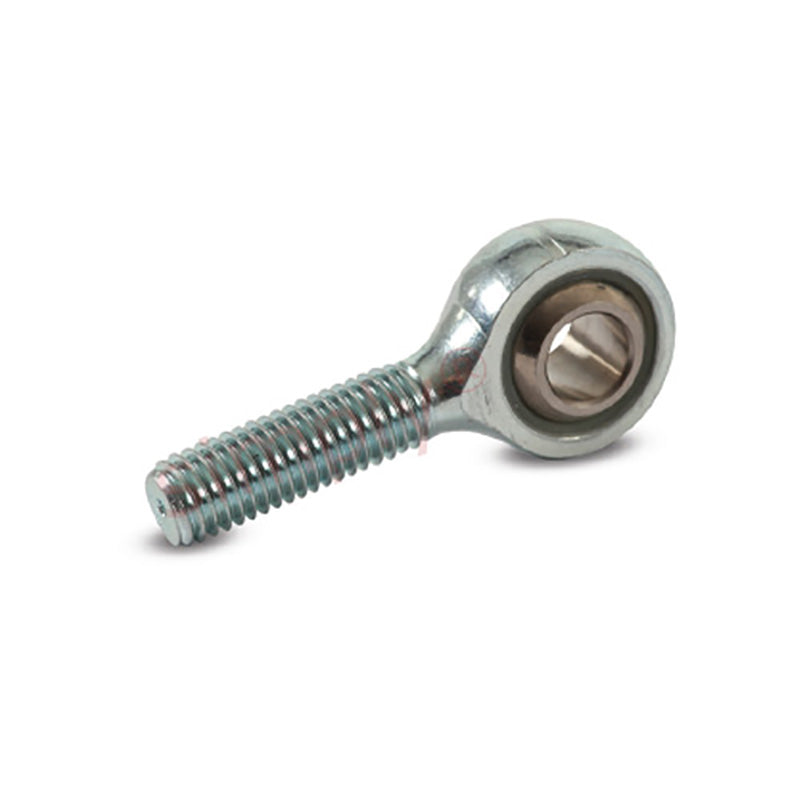

Branded MPL-M10 Left Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M10x1.5 Thread
- Regular price
- €12.90 ex VAT
- Sale price
- €12,90
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€11.48
19
€10.84
29
€10.71
39
€10.58
49
€10.45
74
€10.32
99
€9.68
199
€9.55
249
€9.42
499
€9.29
999
€9.03
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 10mm |
| Thread | = | M10x1.5 |
| W | = | 14mm |
| H | = | 10.5mm |
| D | = | 26mm |
| L1 | = | 48mm |
| L2 | = | 29mm |
| O | = | 12.9mm |
| Static load | = | 16960 N |
