SKU: MS30/560-SKF

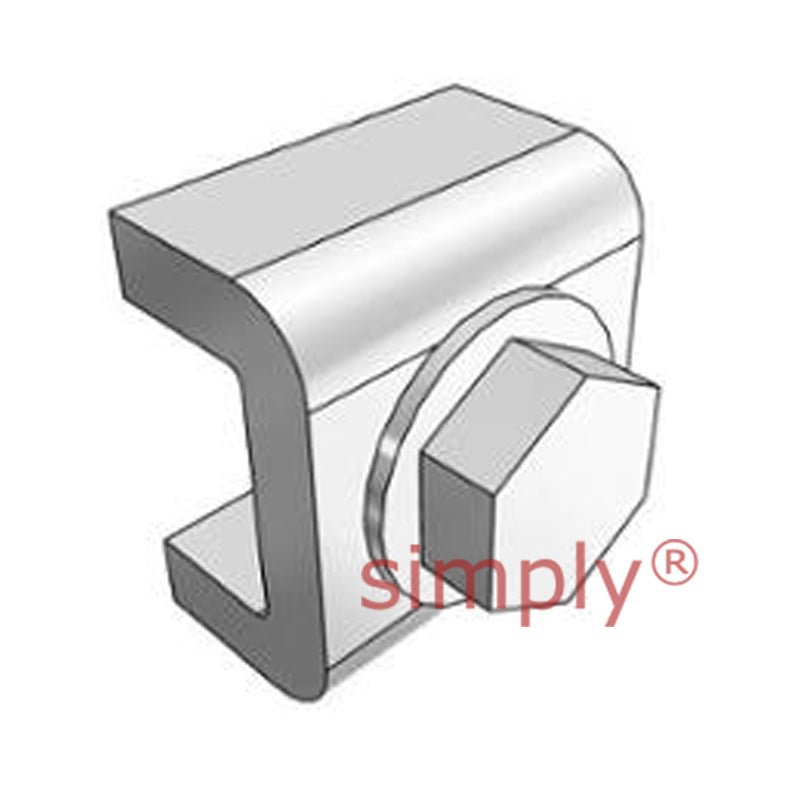

SKF MS30560 Locking Clip 40mm Wide
- Regular price
- €338.91 ex VAT
- Sale price
- €338,91
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€301.63
19
€284.68
29
€281.30
39
€277.91
49
€274.52
74
€271.13
99
€254.18
199
€250.79
249
€247.40
499
€244.02
999
€237.24
Description
|
SKF Locking Clips: Can be used with lock nuts as an alternative to a lock washer, locates in one of the cutouts around the perimeter of the nut and located in the shaft key way, is located by a set screw into the face of the nut. Benefits: Efficient, secure, inexpensive, removable and re-useable |
Technical
| B | = | 40mm |
| M | = | 21mm |
| M1 | = | 7mm |
| M2 | = | 29mm |
| M3 | = | 18mm |
| Weight | = | 0.15 kg |
| Screw | = | M16x30 |
| Spring washer Din128 | = | A16 |
