SKU: MS3196-SKF

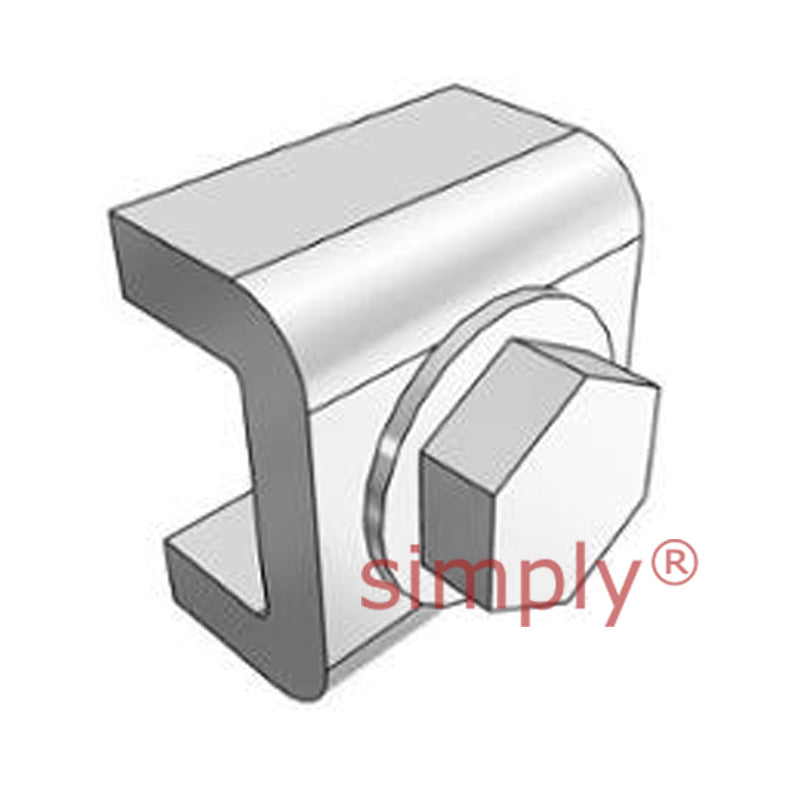

SKF MS3196 Locking Clip 36mm Wide
- Regular price
- €173.94 ex VAT
- Sale price
- €173,94
- Regular price
-
Not in stock
Quantity Price Breaks
10
€154.81
19
€146.11
29
€144.37
39
€142.63
49
€140.89
74
€139.15
99
€130.46
199
€128.72
249
€126.98
499
€125.24
999
€121.76
SKU:
MS3196-SKF
SKF MS3196 Locking Clip 36mm Wide
- Regular price
- €173.94 ex VAT
- Sale price
- €173,94
- Regular price
-
Description
|
SKF Locking Clips: Can be used with lock nuts as an alternative to a lock washer, locates in one of the cutouts around the perimeter of the nut and located in the shaft key way, is located by a set screw into the face of the nut. Benefits: Efficient, secure, inexpensive, removable and re-useable |
Technical
| B | = | 36mm |
| M | = | 15mm |
| M1 | = | 5mm |
| M2 | = | 53mm |
| M3 | = | 18mm |
| Weight | = | 0.11 kg |
| Screw | = | M16x30 |
| Spring washer Din128 | = | A16 |
