SKU: MSC1.7/16-RHP

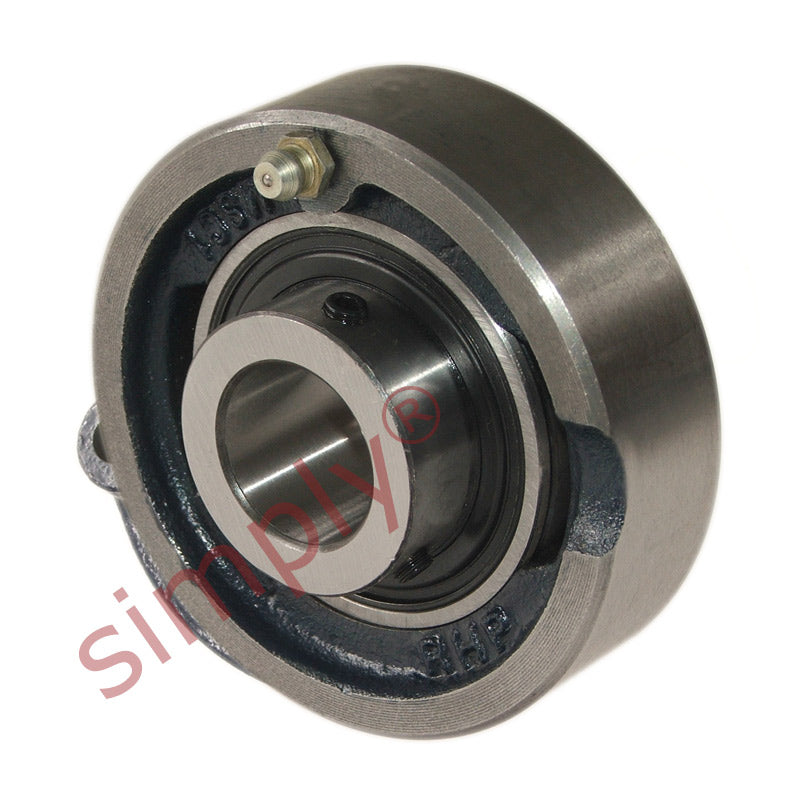

RHP MSC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 106.39mm Outside Diameter
- Regular price
- €105.88 ex VAT
- Sale price
- €105,88
- Regular price
-
Not in stock
Quantity Price Breaks
10
€94.23
20
€88.94
30
€87.88
40
€86.82
50
€85.76
75
€84.70
100
€79.41
200
€78.35
250
€77.29
500
€76.23
1000
€74.12
SKU:
MSC1.7/16-RHP
RHP MSC1-7/16 Cast Iron Cartridge Unit with 1-7/16 inch Bore Insert 106.39mm Outside Diameter
- Regular price
- €105.88 ex VAT
- Sale price
- €105,88
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-7/16 inch |
| L | = | 4.1885 inch |
| A | = | 1.469 inch |
| A1 | = | 1.923 inch |
| B | = | 1.938 inch |
| s | = | 0.752 inch |
| d1 | = | 2.075 |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 19900 N |
| Rex max speed | = | 4000 rpm |
| Weight | = | 2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1040-1-7/16G+insonly" |
| > | = | 1040-1-7/16G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
