SKU: MSC100-RHP

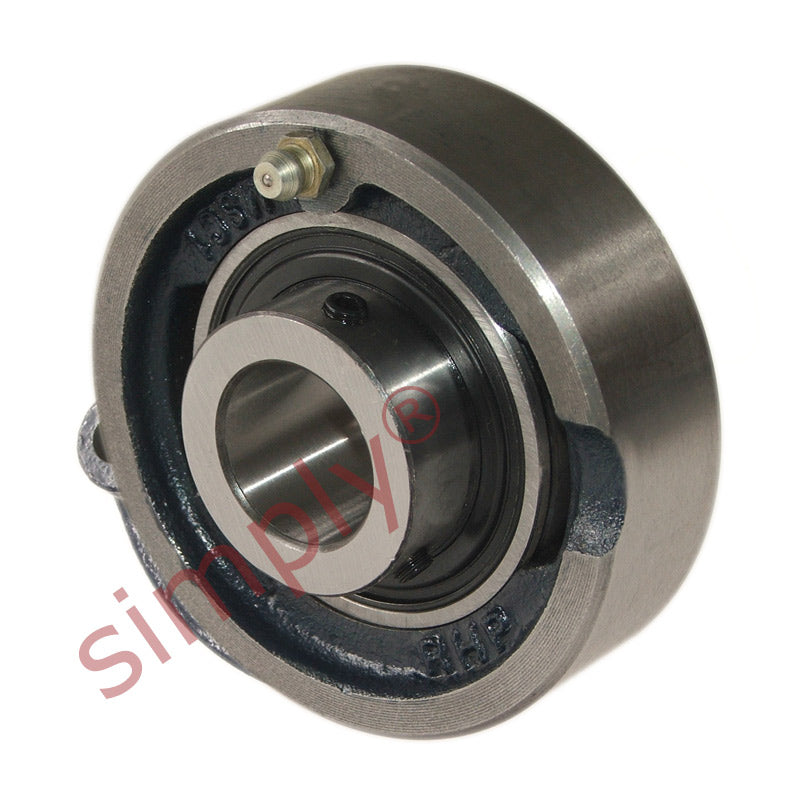

RHP MSC100 Cast Iron Cartridge Unit with 100mm Bore Insert 241.33mm Outside Diameter
- Regular price
- €977.58 ex VAT
- Sale price
- €977,58
- Regular price
-
Not in stock
Quantity Price Breaks
10
€870.05
20
€821.17
30
€811.39
40
€801.62
50
€791.84
75
€782.06
100
€733.19
200
€723.41
250
€713.63
500
€703.86
1000
€684.31
SKU:
MSC100-RHP
RHP MSC100 Cast Iron Cartridge Unit with 100mm Bore Insert 241.33mm Outside Diameter
- Regular price
- €977.58 ex VAT
- Sale price
- €977,58
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 100mm |
| L | = | 241.325mm |
| A | = | 76.2mm |
| A1 | = | 106.38mm |
| B | = | 117.48mm |
| s | = | 49.27mm |
| d1 | = | 130.43 |
| Dynamic load Cr | = | 157000 N |
| Static load Cor | = | 122000 N |
| Rex max speed | = | 1600 rpm |
| Weight | = | 20.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=3095-100G+insonly" |
| > | = | 3095-100G Click Here< |
| /a> | = | |
| Casting group | = | 13 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
