SKU: MSC2-RHP

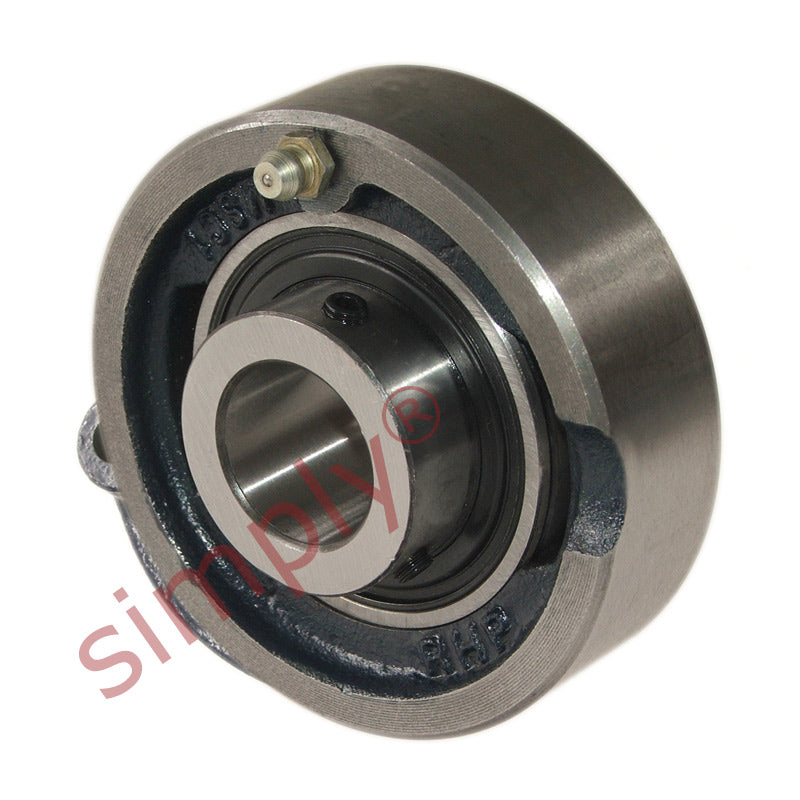

RHP MSC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
- Regular price
- €146.17 ex VAT
- Sale price
- €146,17
- Regular price
-
Not in stock
Quantity Price Breaks
10
€130.09
20
€122.78
30
€121.32
40
€119.86
50
€118.40
75
€116.94
100
€109.63
200
€108.17
250
€106.70
500
€105.24
1000
€102.32
SKU:
MSC2-RHP
RHP MSC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
- Regular price
- €146.17 ex VAT
- Sale price
- €146,17
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| L | = | 4.9385 inch |
| A | = | 1.594 inch |
| A1 | = | 2.109 inch |
| B | = | 2.187 inch |
| s | = | 0.877 inch |
| d1 | = | 2.709 |
| Dynamic load Cr | = | 43500 N |
| Static load Cor | = | 29200 N |
| Rex max speed | = | 3100 rpm |
| Weight | = | 2.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-2G+insonly" |
| > | = | 1055-2G Click Here< |
| /a> | = | |
| Casting group | = | 6 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
