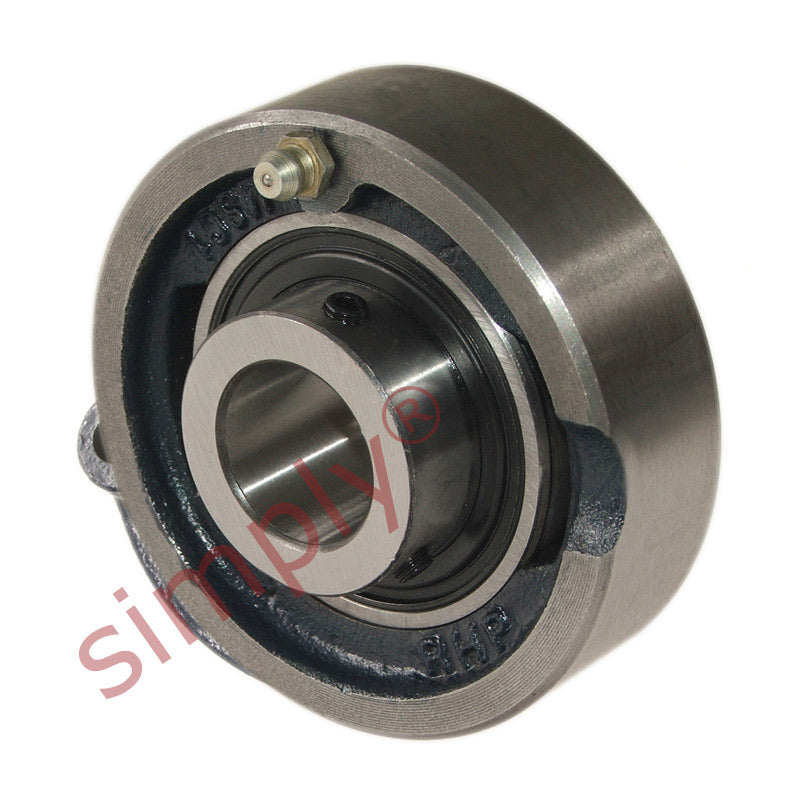

RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter

SKU: MSC3.7/16-RHP

RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter

€608.24 ex VAT
€608,24
ex VAT
Not in stock

Quantity Price Breaks

10 €541.33
20 €510.92
30 €504.84
40 €498.76
50 €492.67
75 €486.59
100 €456.18
200 €450.10
250 €444.02
500 €437.93
1000 €425.77
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter
SKU: MSC3.7/16-RHP

RHP MSC3-7/16 Cast Iron Cartridge Unit with 3-7/16 inch Bore Insert 207.99mm Outside Diameter

€608.24 ex VAT
€608,24
ex VAT

Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Technical

Bore = 3-7/16 inch
L = 8.1885 inch
A = 2.5 inch
A1 = 3.467 inch
B = 3.781 inch
s = 1.564 inch
d1 = 4.396
Dynamic load Cr = 96000 N
Static load Cor = 71500 N
Rex max speed = 1900 rpm
Weight = 12.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1090-3-7/16G+insonly"
> = 1090-3-7/16G Click Here<
/a> =
Casting group = 12
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
