SKU: MSC60-RHP
RHP MSC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
- Regular price
- €164.30 ex VAT
- Sale price
- €164,30
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

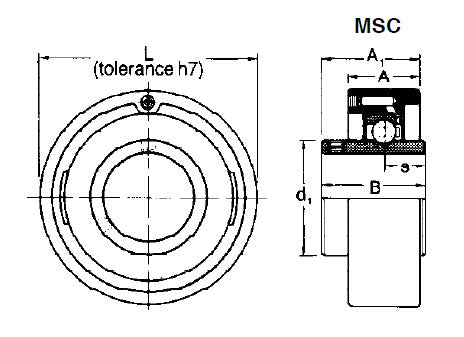

Technical
| Bore | = | 60mm |
| L | = | 149.25mm |
| A | = | 41.28mm |
| A1 | = | 60.3mm |
| B | = | 65.07mm |
| s | = | 25.45mm |
| d1 | = | 75.34 |
| Dynamic load Cr | = | 48000 N |
| Static load Cor | = | 33000 N |
| Rex max speed | = | 2800 rpm |
| Weight | = | 4.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1060-60G+insonly" |
| > | = | 1060-60G Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
