SKU: MSC65-RHP

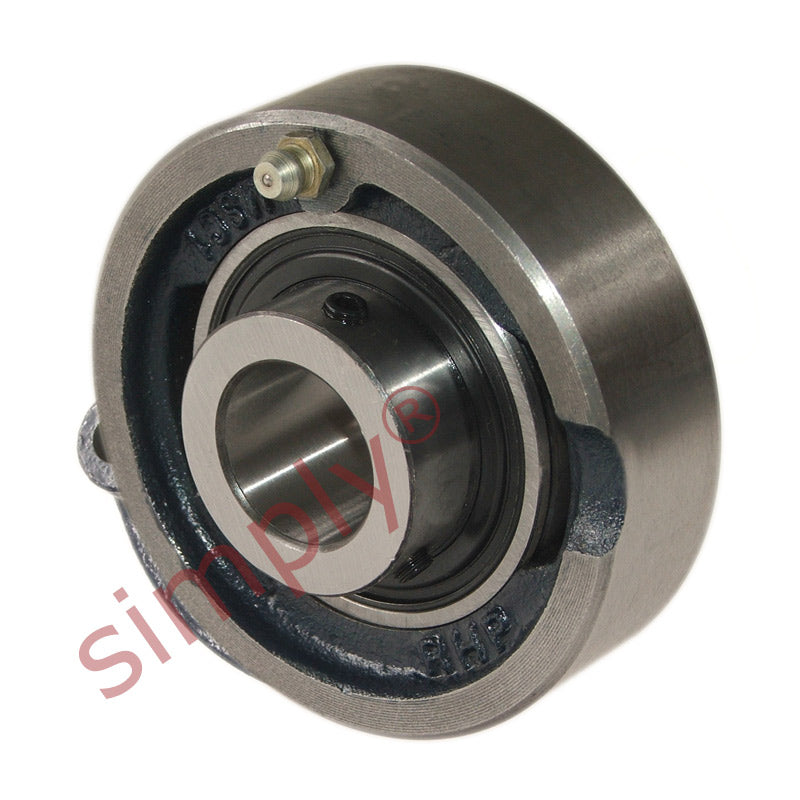

RHP MSC65 Cast Iron Cartridge Unit with 65mm Bore Insert 158.78mm Outside Diameter
- Regular price
- €231.53 ex VAT
- Sale price
- €231,53
- Regular price
-
Not in stock
Quantity Price Breaks
10
€206.06
20
€194.49
30
€192.17
40
€189.85
50
€187.54
75
€185.22
100
€173.65
200
€171.33
250
€169.02
500
€166.70
1000
€162.07
SKU:
MSC65-RHP
RHP MSC65 Cast Iron Cartridge Unit with 65mm Bore Insert 158.78mm Outside Diameter
- Regular price
- €231.53 ex VAT
- Sale price
- €231,53
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 65mm |
| L | = | 158.775mm |
| A | = | 50.8mm |
| A1 | = | 69.8mm |
| B | = | 74.63mm |
| s | = | 30.23mm |
| d1 | = | 87 |
| Dynamic load Cr | = | 61000 N |
| Static load Cor | = | 45000 N |
| Rex max speed | = | 2450 rpm |
| Weight | = | 5.3 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1070-65G+insonly" |
| > | = | 1070-65G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
