SKU: MSC75-RHP

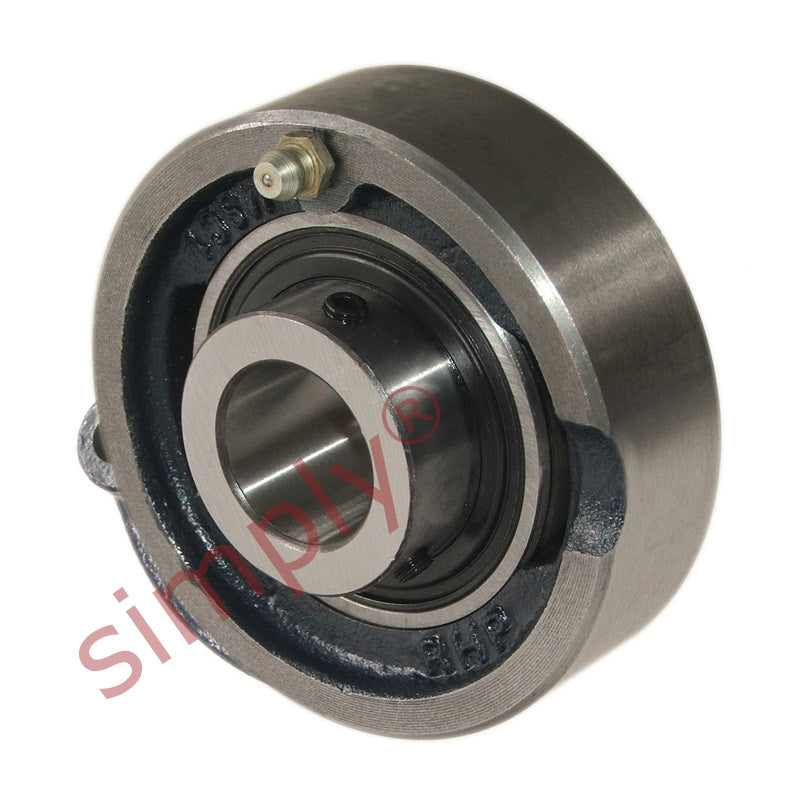

RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
- Regular price
- €265.76 ex VAT
- Sale price
- €265,76
- Regular price
-
Not in stock
Quantity Price Breaks
10
€236.53
20
€223.24
30
€220.58
40
€217.92
50
€215.27
75
€212.61
100
€199.32
200
€196.66
250
€194.00
500
€191.35
1000
€186.03
SKU:
MSC75-RHP
RHP MSC75 Cast Iron Cartridge Unit with 75mm Bore Insert 168.3mm Outside Diameter
- Regular price
- €265.76 ex VAT
- Sale price
- €265,76
- Regular price
-
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 75mm |
| L | = | 168.3mm |
| A | = | 50.8mm |
| A1 | = | 69.8mm |
| B | = | 77.77mm |
| s | = | 33.37mm |
| d1 | = | 92 |
| Dynamic load Cr | = | 66000 N |
| Static load Cor | = | 49500 N |
| Rex max speed | = | 2300 rpm |
| Weight | = | 6.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1075-75G+insonly" |
| > | = | 1075-75G Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
