SKU: MST1.3/4-RHP

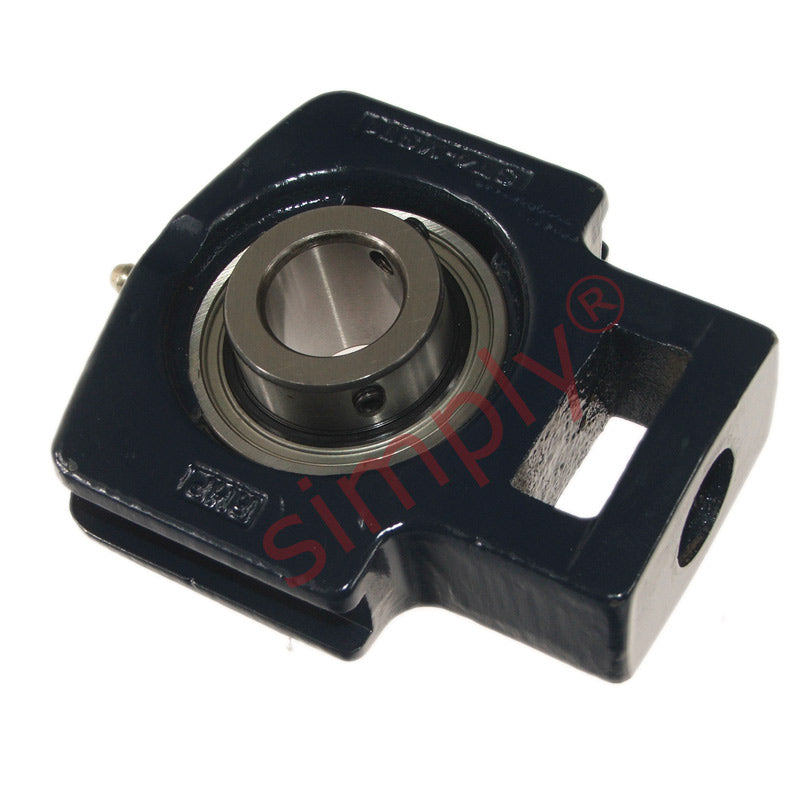

RHP MST1-3/4 Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
- Regular price
- €160.02 ex VAT
- Sale price
- €160,02
- Regular price
-
Not in stock
Quantity Price Breaks
10
€142.42
20
€134.42
30
€132.82
40
€131.22
50
€129.62
75
€128.02
100
€120.02
200
€118.41
250
€116.81
500
€115.21
1000
€112.01
SKU:
MST1.3/4-RHP
RHP MST1-3/4 Cast Iron Take Up Unit and 1-3/4 inch Bore Insert
- Regular price
- €160.02 ex VAT
- Sale price
- €160,02
- Regular price
-
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-3/4 inch |
| L | = | 5.945 inch |
| L1 | = | 3.563 inch |
| L2 | = | 0.61 inch |
| L3 | = | 0.807 inch |
| L4 | = | 3.209 inch |
| L5 | = | 1.988 inch |
| H | = | 4.646 inch |
| H1 | = | 3.248 inch |
| H2 | = | 1.949 inch |
| H3 | = | 3.976 inch |
| N | = | 1.142 inch |
| A | = | 1.949 inch |
| A1 | = | 1.457 inch |
| A2 | = | 0.689 inch |
| B | = | 2.031 inch |
| B5 | = | - inch |
| s | = | 0.752 inch |
| d1 | = | 2.449 inch |
| d4 | = | - inch |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-1-3/4G+insonly" |
| > | = | 1050-1-3/4G Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
