SKU: MST1.7/16-RHP

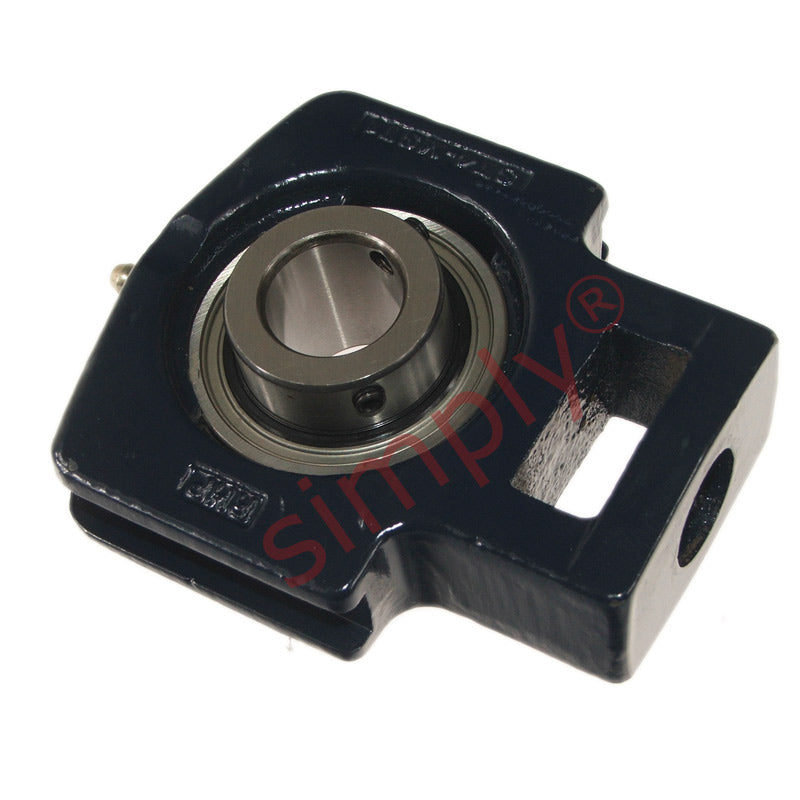

RHP MST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
- Regular price
- €126.80 ex VAT
- Sale price
- €126,80
- Regular price
-
Not in stock
Quantity Price Breaks
10
€112.85
20
€106.51
30
€105.24
40
€103.98
50
€102.71
75
€101.44
100
€95.10
200
€93.83
250
€92.56
500
€91.30
1000
€88.76
SKU:
MST1.7/16-RHP
RHP MST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
- Regular price
- €126.80 ex VAT
- Sale price
- €126,80
- Regular price
-
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 1-7/16 inch |
| L | = | 5.65 inch |
| L1 | = | 3.512 inch |
| L2 | = | 0.61 inch |
| L3 | = | 0.807 inch |
| L4 | = | 3.209 inch |
| L5 | = | 1.988 inch |
| H | = | 4.646 inch |
| H1 | = | 3.248 inch |
| H2 | = | 1.949 inch |
| H3 | = | 3.976 inch |
| N | = | 1.142 inch |
| A | = | 1.949 inch |
| A1 | = | 1.457 inch |
| A2 | = | 0.689 inch |
| B | = | 1.938 inch |
| B5 | = | - inch |
| s | = | 0.752 inch |
| d1 | = | 2.075 inch |
| d4 | = | - inch |
| Dynamic load | = | 32500 N |
| Static load | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 2.7 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1040-1-7/16G+insonly" |
| > | = | 1040-1-7/16G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
