SKU: MST30-RHP

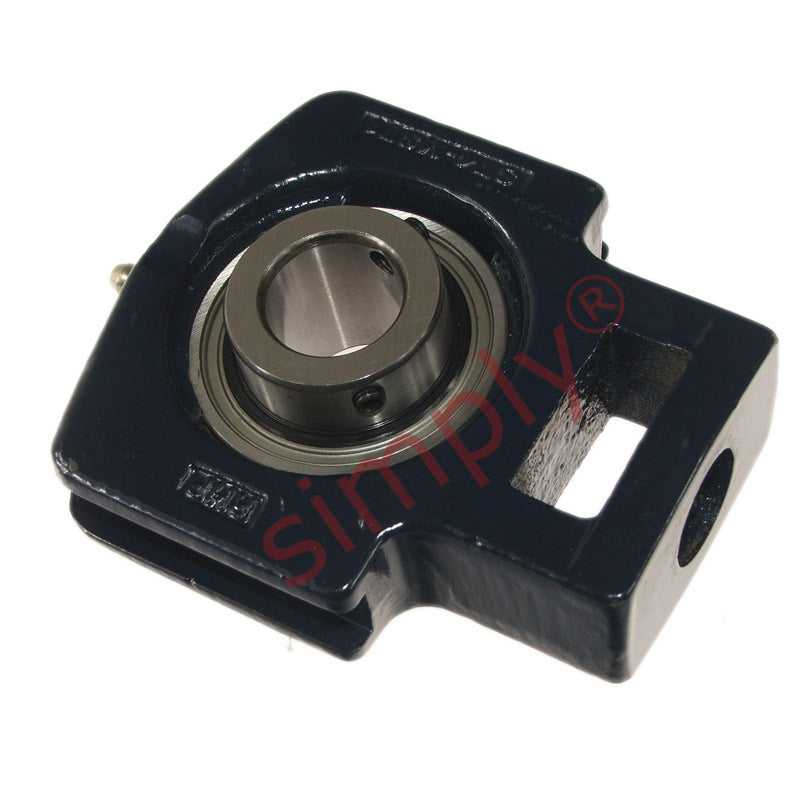

RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
- Regular price
- €104.37 ex VAT
- Sale price
- €104,37
- Regular price
-
Not in stock
Quantity Price Breaks
10
€92.89
20
€87.67
30
€86.63
40
€85.58
50
€84.54
75
€83.50
100
€78.28
200
€77.23
250
€76.19
500
€75.15
1000
€73.06
SKU:
MST30-RHP
RHP MST30 Cast Iron Take Up Unit and 30mm Bore Insert
- Regular price
- €104.37 ex VAT
- Sale price
- €104,37
- Regular price
-
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 30mm |
| L | = | 124mm |
| L1 | = | 75.5mm |
| L2 | = | 12.5mm |
| L3 | = | 16.5mm |
| L4 | = | 64.5mm |
| L5 | = | 43mm |
| H | = | 101.5mm |
| H1 | = | 64.5mm |
| H2 | = | 37.5mm |
| H3 | = | 89mm |
| N | = | 22.5mm |
| A | = | 36.5mm |
| A1 | = | 30mm |
| A2 | = | 13.5mm |
| B | = | 42.88mm |
| B5 | = | -mm |
| s | = | 17.53mm |
| d1 | = | 46.69mm |
| d4 | = | -mm |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.6 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-30G+insonly" |
| > | = | 1035-30G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4mm x 28 TPI |
