SKU: MST55-RHP

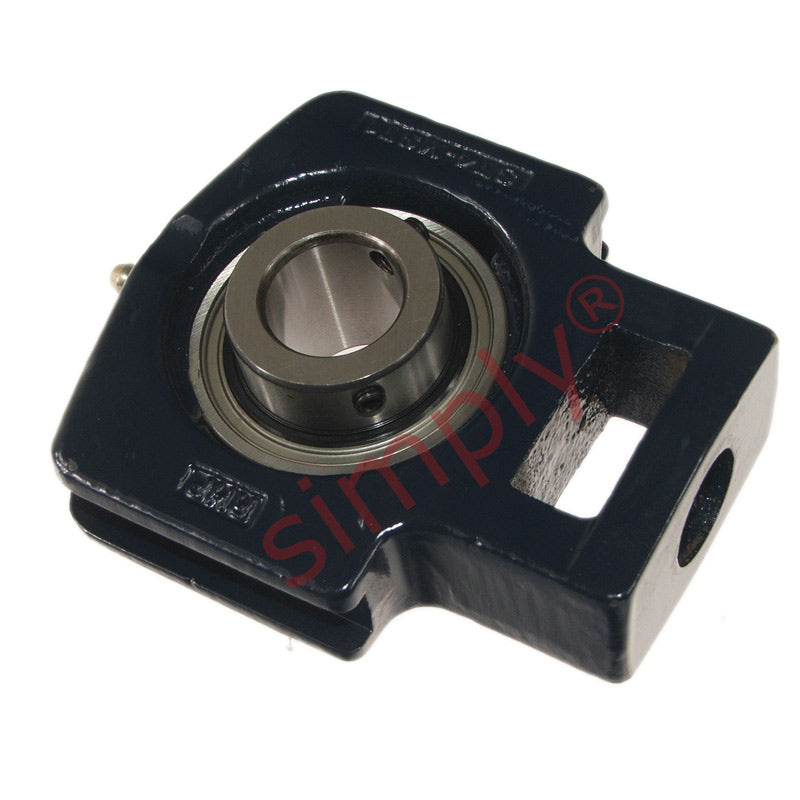

RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
- Regular price
- €212.65 ex VAT
- Sale price
- €212,65
- Regular price
-
Not in stock
Quantity Price Breaks
10
€189.26
20
€178.63
30
€176.50
40
€174.37
50
€172.25
75
€170.12
100
€159.49
200
€157.36
250
€155.23
500
€153.11
1000
€148.86
SKU:
MST55-RHP
RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
- Regular price
- €212.65 ex VAT
- Sale price
- €212,65
- Regular price
-
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 55mm |
| L | = | 192mm |
| L1 | = | 119mm |
| L2 | = | 19mm |
| L3 | = | 32mm |
| L4 | = | 97.5mm |
| L5 | = | 70mm |
| H | = | 146mm |
| H1 | = | 101mm |
| H2 | = | 64mm |
| H3 | = | 130mm |
| N | = | 35mm |
| A | = | 63.5mm |
| A1 | = | 46.5mm |
| A2 | = | 27mm |
| B | = | 65.07mm |
| B5 | = | -mm |
| s | = | 25.45mm |
| d1 | = | 73.34mm |
| d4 | = | -mm |
| Dynamic load | = | 48000 N |
| Static load | = | 33000 N |
| Rec max speed | = | 2800 rpm |
| Weight | = | 5.4 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1060-55G+insonly" |
| > | = | 1060-55G Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4mm x 28 TPI |
