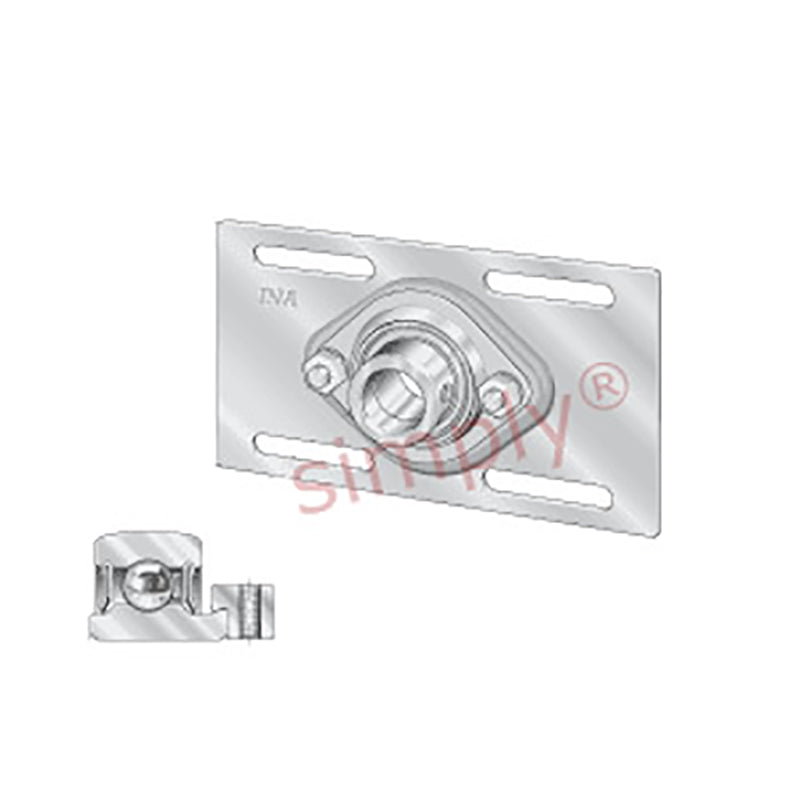

INA MSTU30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore

SKU: MSTU30-XL-INA

INA MSTU30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore

€47.98 ex VAT
€47,98
ex VAT
In stock

Quantity Price Breaks

10+ €42.70
19+ €40.30
29+ €39.82
39+ €39.34
49+ €38.86
74+ €38.38
99+ €35.99
199+ €35.51
249+ €35.03
499+ €34.55
999+ €33.59
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA MSTU30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore
SKU: MSTU30-XL-INA

INA MSTU30XL Sheet Steel Take Up Unit with Eccentric Collar Insert 30mm Bore

€47.98 ex VAT
€47,98
ex VAT

Description

INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. These sheet steel take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
