Branded MT7/8 Imperial Thrust Ball Bearing 7/8x1-13/16x3/4 inch

SKU: MT7/8.MB

Branded MT7/8 Imperial Thrust Ball Bearing 7/8x1-13/16x3/4 inch

€81.66 ex VAT
€81,66
ex VAT
In stock

Quantity Price Breaks

10 €72.68
19 €68.59
29 €67.78
39 €66.96
49 €66.14
74 €65.33
99 €61.25
199 €60.43
249 €59.61
499 €58.80
999 €57.16
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MT7/8 Imperial Thrust Ball Bearing 7/8x1-13/16x3/4 inch
SKU: MT7/8.MB

Branded MT7/8 Imperial Thrust Ball Bearing 7/8x1-13/16x3/4 inch

€81.66 ex VAT
€81,66
ex VAT

Description

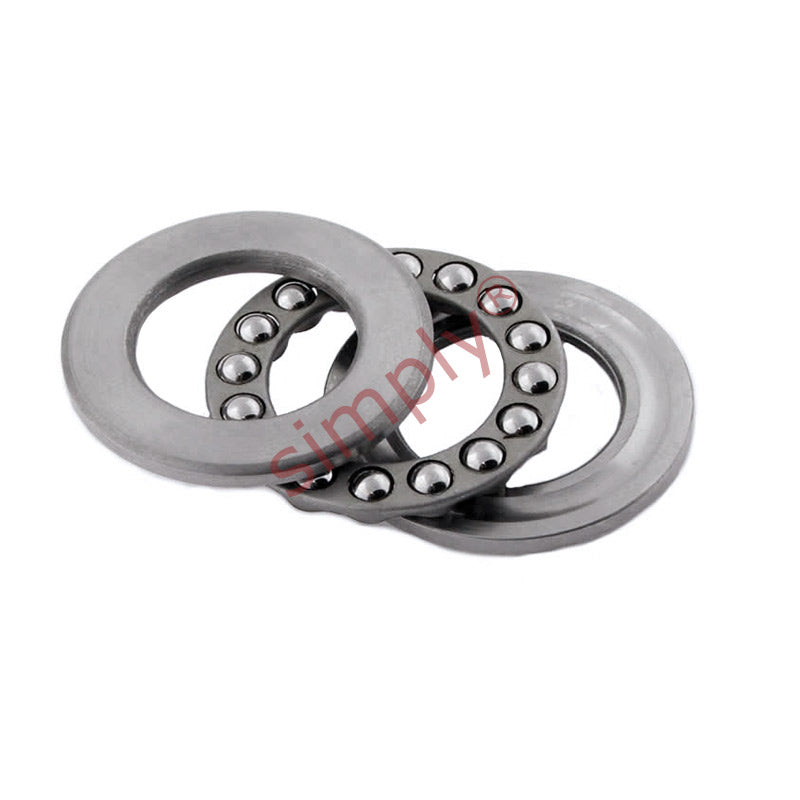

Imperial Ball Thrust Bearings: Consisting of two grooved washers and a ball race supported in a cage assembly. For ease of assembly they are separable into the three components permitting each part to be mounted individually, This style of bearing offers some element of shaft location, axial load and limited radial load.
Benefits: Cost effective, separable for ease of mounting, axial loading

Technical

Shaft Washer Bore(d) = 7/8 inch
Housing Washer Bore(D1) = 15/16 inch
Shaft Washer Outside Diameter(d1) = 1-3/4 inch
Housing Washer Outside Diameter(D) = 1-13/16 inch
Width = 3/4 inch
