Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch

SKU: MTO-265X

Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch

€2.229.54 ex VAT
€2.229,54
ex VAT
Equivalent to: STO-265X
In stock

Quantity Price Breaks

3 €1.984.29
4 €1.872.81
9 €1.850.52
19 €1.828.22
29 €1.805.93
39 €1.783.63
49 €1.672.16
59 €1.649.86
249 €1.627.56
499 €1.605.27
999 €1.560.68
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch
SKU: MTO-265X

Silverthin MTO265X No Gear Slewing Ring 10.433x17.086x1.968 inch

€2.229.54 ex VAT
€2.229,54
ex VAT

Description

Silverthin Kaydon No Gear Slewing Ring: This slewing ring is a non-gear four-point contact bearing with a rectangular cross-section.
This slewing ring has clearance.

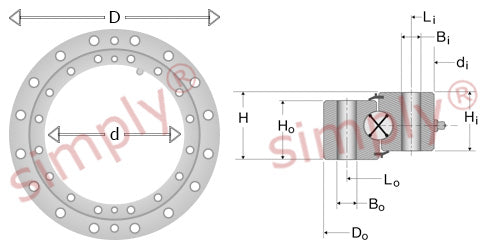

Technical

(di) Inner Diameter = 10.433 inch
(Do) Outer Diameter = 17.086 inch
(H) Full Width = 1.968 inch
(Hii/Ho) Inner/Outer Ring Width = 1.732 inch
(Li) Inner Ring = 11.614 inch
(ni) No of Inner Ring Holes = 24 holes
(Bi) = 0.594 inch
(Lo) Outer Ring = 15.354 inch
(no) No of Outer Ring Holes = 18 holes
(B) = 0.594 inch
(ft - lbs) Moment Rating = 48670 inch
(kg) Weight = 27.5kg
