SKU: N13-EU

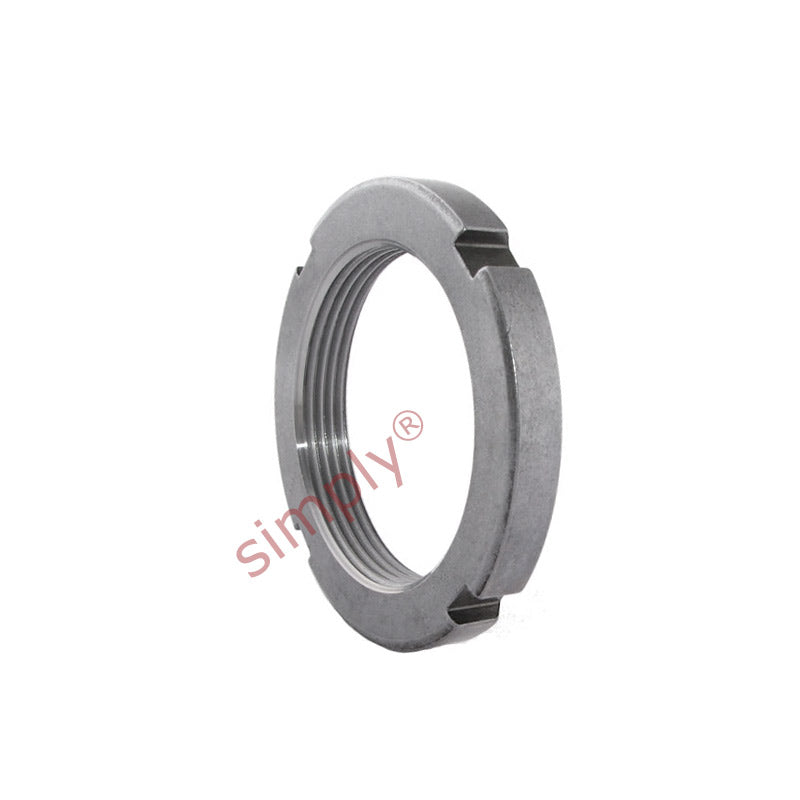

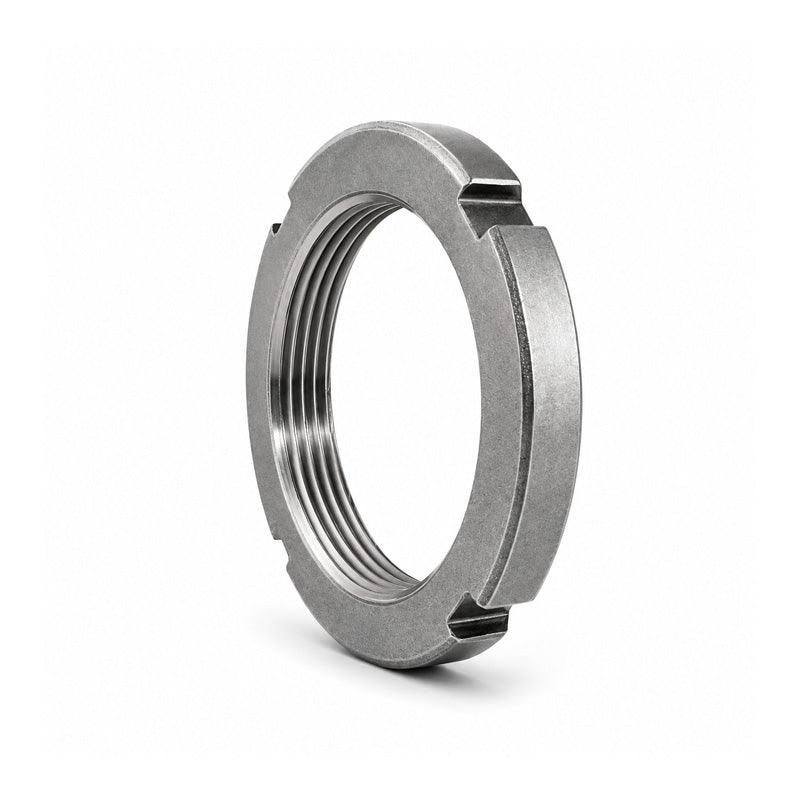

Premier Budget N13 Imperial Lock Nut (Lock Washer Type) 2.548x3.38x0.573 inch
- Regular price
- €12.46 ex VAT
- Sale price
- €12,46
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€11.09
5
€10.47
9
€10.34
19
€10.22
49
€10.09
74
€9.97
99
€9.35
199
€9.22
249
€9.10
499
€8.97
999
€8.72
Description
Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft or sleeve nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
Technical
| G | = | 2.548 inch |
| Threads per inch | = | 18 |
| d< | = | sub> |
| 1< | = | /sub> |
| = | 3.063 inch | |
| d< | = | sub> |
| 3< | = | /sub> |
| max | = | 3.38 inch |
| B | = | 0.573 inch |
| b | = | 0.24 inch |
| h | = | 0.135 inch |
| Static axial load carrying capacity | = | 31024 lbf |
| Mass | = | 0.2722 kg |
| Associated spanner | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=1& |
| keywords=HN12-13+lock+spanner" | = | > |
| HN12-13 [Click Here]< | = | /a> |
| = | ||
| Associated locking device | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=1& |
| keywords=W13+lock+tab+washer" | = | > |
| W13 [Click Here] | = | N/A |
