SKU: N217-EU

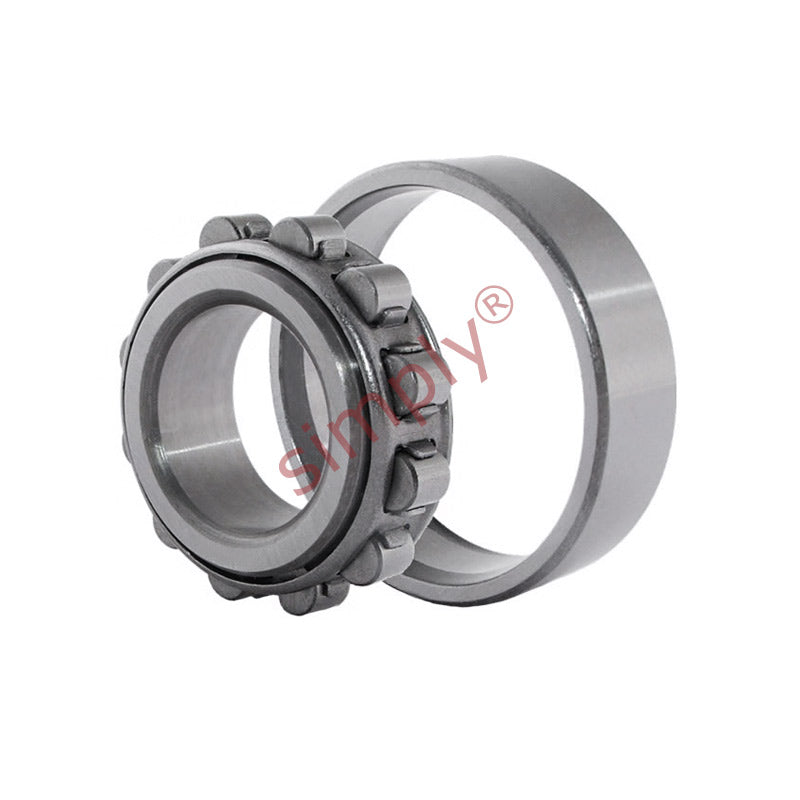

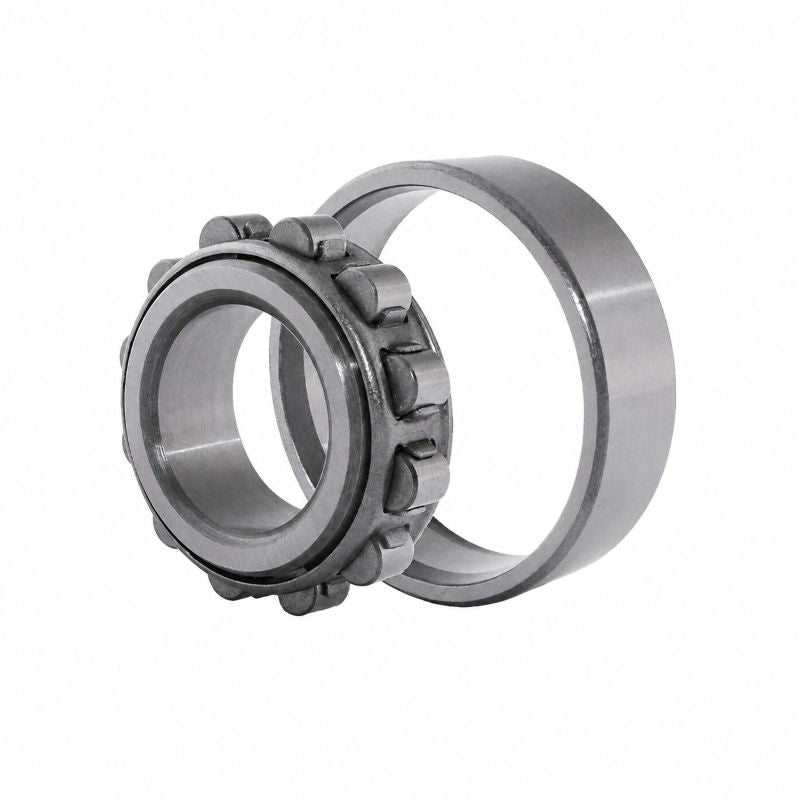

N217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
- Regular price
- €140.01 ex VAT
- Sale price
- €140,01
- Regular price
-
In stock
Quantity Price Breaks
10
€124.61
19
€117.61
29
€116.21
39
€114.81
49
€113.41
74
€112.01
99
€105.01
199
€103.61
249
€102.21
499
€100.81
999
€98.01
SKU:
N217-EU
N217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
- Regular price
- €140.01 ex VAT
- Sale price
- €140,01
- Regular price
-
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |

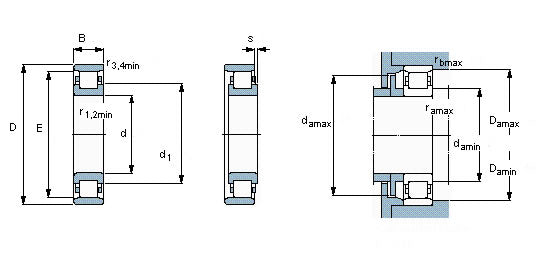

Technical
| d | = | 85mm |
| D | = | 150mm |
| B | = | 28mm |
| Dynamic load C | = | 190 kN |
| Static load Co | = | 200 kN |
| Fatigue load limit Pu | = | 24.5 kN |
| Reference speed | = | 4800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 1.9 kg |
| Cage options | = | M |
| d1 | = | 107mm |
| F, E | = | 136.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 1.5mm |
| da min | = | 96mm |
| da max | = | 134mm |
| db min | = | 139mm |
| Da max | = | 139mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
