SKU: NA2206.2RS-MB

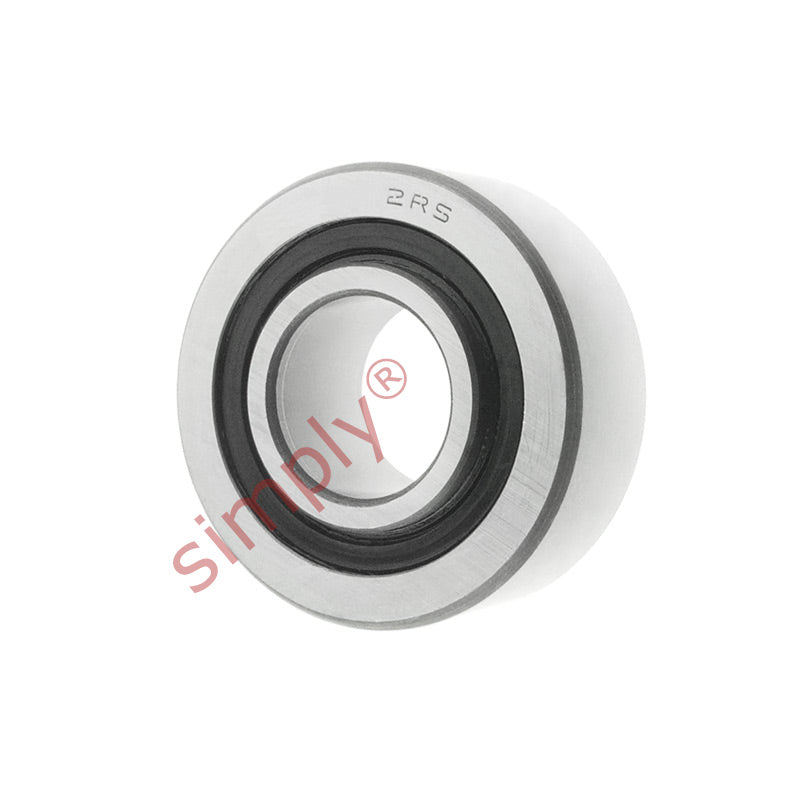

Major Brand NA22062RS Support Roller Without Axial Guidance With Inner Sleeve 30x62x19.8mm
- Regular price
- €86.03 ex VAT
- Sale price
- €86,03
- Regular price
-
Not in stock
Quantity Price Breaks
10
€76.57
19
€72.27
29
€71.40
39
€70.54
49
€69.68
74
€68.82
99
€64.52
199
€63.66
249
€62.80
499
€61.94
999
€60.22
SKU:
NA2206.2RS-MB
Major Brand NA22062RS Support Roller Without Axial Guidance With Inner Sleeve 30x62x19.8mm
- Regular price
- €86.03 ex VAT
- Sale price
- €86,03
- Regular price
-
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
Technical
| d | = | 30mm |
| D | = | 62mm |
| C | = | 19.8mm |
| B | = | 20mm |
| D1 | = | 43mm |
| F | = | 35mm |
| r min | = | 1mm |
| r1r2 min | = | 0.3mm |
| Speed rating | = | 1400 rpm |
| Dynamic load | = | 17600 N |
| Basic static load | = | 24500 N |
| Fatigue load limit Pu | = | 3000 N |
| Max radial dynamic force | = | 28500 N |
| Max radial static force | = | 40500 N |
| Weight | = | 320 g |
