SKU: NATR30PPA-MB

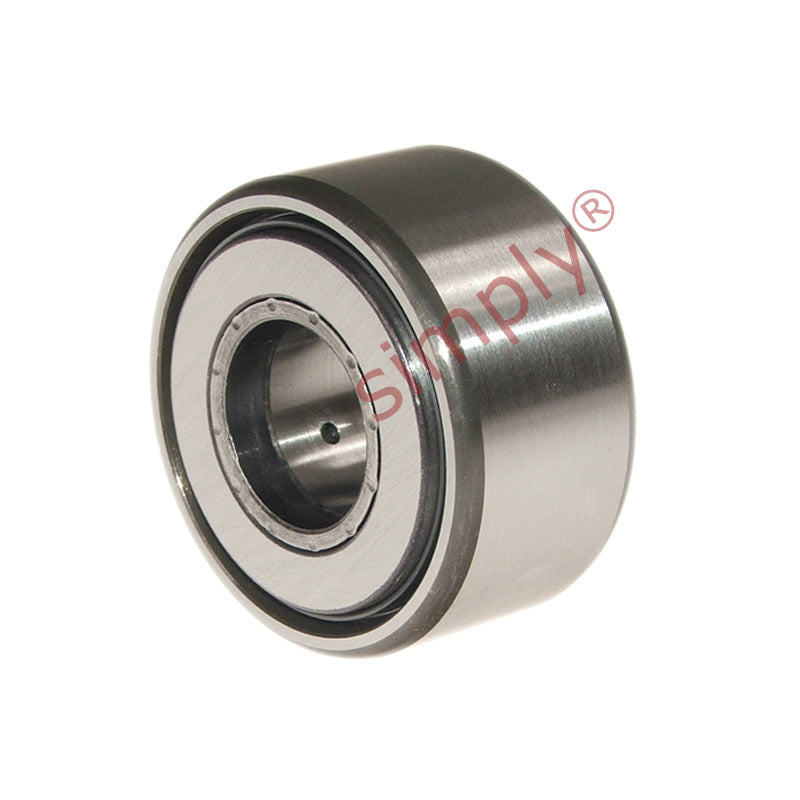

Major Brand NATR30PPA Support Roller With Axial Guidance 30x62x29mm
- Regular price
- €86.07 ex VAT
- Sale price
- €86,07
- Regular price
-
In stock
Quantity Price Breaks
10
€76.60
19
€72.30
29
€71.44
39
€70.58
49
€69.72
74
€68.86
99
€64.55
199
€63.69
249
€62.83
499
€61.97
999
€60.25
SKU:
NATR30PPA-MB
Major Brand NATR30PPA Support Roller With Axial Guidance 30x62x29mm
- Regular price
- €86.07 ex VAT
- Sale price
- €86,07
- Regular price
-
Description
NATR Axial Guidance Support Rollers: This type of support roller incorporates a guided needle roller cage arrangement and permits relatively high speed operation, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads. |
Technical
| d | = | 30mm |
| D | = | 62mm |
| B | = | 29mm |
| C | = | 28mm |
| d1 | = | 51mm |
| r min | = | 1mm |
| r1 min | = | -mm |
| Speed rating | = | 1300 rpm |
| Basic dynamic load | = | 22900 N |
| Basic static load | = | 37500 N |
| Fatigue load limit Pu | = | 4550 N |
| Max radial dynamic force | = | 26500 N |
| Max radial static force | = | 38000 N |
| Weight | = | 440 g |
