SKU: NATV35PPA-MB

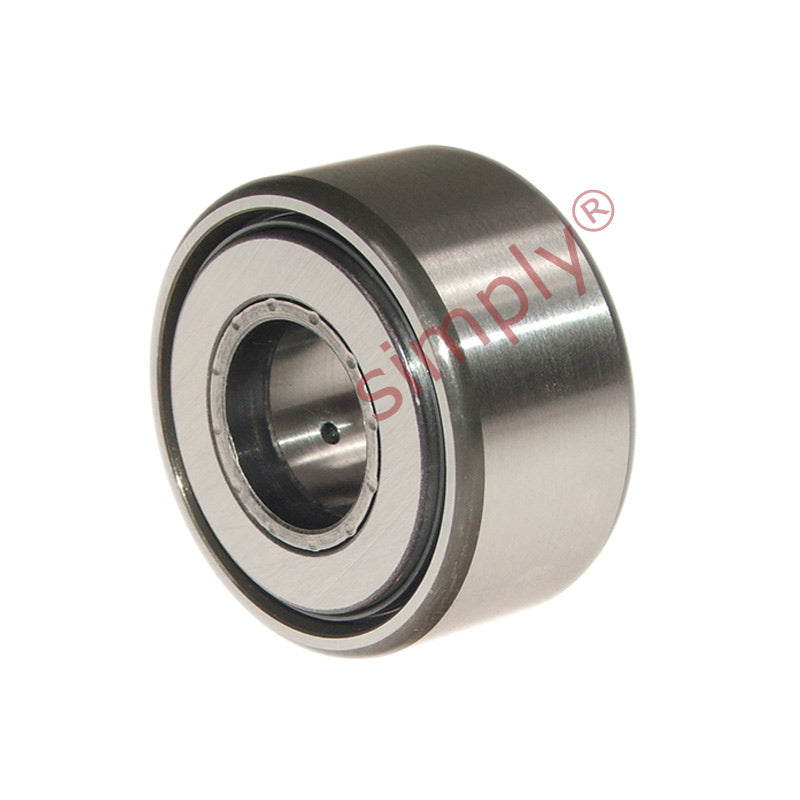

Major Brand NATV35PPA Support Roller With Axial Guidance 35x72x29mm
- Regular price
- €152.07 ex VAT
- Sale price
- €152,07
- Regular price
-
Quantity Price Breaks
Major Brand NATV35PPA Support Roller With Axial Guidance 35x72x29mm
- Regular price
- €152.07 ex VAT
- Sale price
- €152,07
- Regular price
-
Description
NATV Axial Guidance Support Rollers: Similar in design to the NATR series the NATV has a full complement needle roller assembly arrangement, the absence of a cage permits the maximum number of rollers to be fitted thus providing an extremely high load to be handled at reasonably high speed, the outer ring is guided by pressed on side washers which also form gap seals with the outer ring which is particularly thick by design, intended to cope with heavy loads and also shock loads, NATV support roller will require frequent re-lubrication. |
Technical
| d | = | 35mm |
| D | = | 72mm |
| B | = | 29mm |
| C | = | 28mm |
| d1 | = | 58mm |
| r min | = | 1.1mm |
| r1 min | = | -mm |
| Speed rating | = | 750 rpm |
| Basic dynamic load | = | 31900 N |
| Basic static load | = | 72000 N |
| Fatigue load limit Pu | = | 8800 N |
| Max radial dynamic force | = | 43000 N |
| Max radial static force | = | 62000 N |
| Weight | = | 630 g |
