SKU: NJ211-CDX
Codex NJ211 Single Row Cylindrical Roller Bearing 55x100x21mm
- Regular price
- €56.04 ex VAT
- Sale price
- €56,04
- Regular price
-
In stock
Quantity Price Breaks
10
€49.88
19
€47.07
29
€46.51
39
€45.95
49
€45.39
74
€44.83
99
€42.03
199
€41.47
249
€40.91
499
€40.35
999
€39.23
SKU:
NJ211-CDX
Codex NJ211 Single Row Cylindrical Roller Bearing 55x100x21mm
- Regular price
- €56.04 ex VAT
- Sale price
- €56,04
- Regular price
-
Description
|

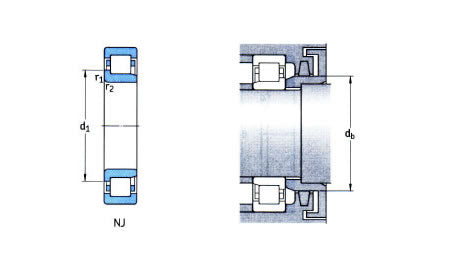

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 55mm |
| D | = | 100mm |
| B | = | 21mm |
| Dynamic load C | = | 96.5 kN |
| Static load Co | = | 95 kN |
| Fatigue load limit Pu | = | 12.2 kN |
| Reference speed | = | 7500 rpm |
| Limiting speed | = | 8000 rpm |
| Weight | = | 0.67 kg |
| Cage options | = | J.M.ML |
| d1 | = | 70.8mm |
| D1 | = | 86.3mm |
| F, E | = | 66mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| s | = | 1mm |
| da min | = | 64mm |
| da max | = | 64mm |
| db min | = | 73mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
| Angle ring | = | HJ211EC |
| Angle ring weight | = | 0.083kg |
| B1 | = | 6mm |
| B2 | = | 9.5mm |
