SKU: NJ213-CDX

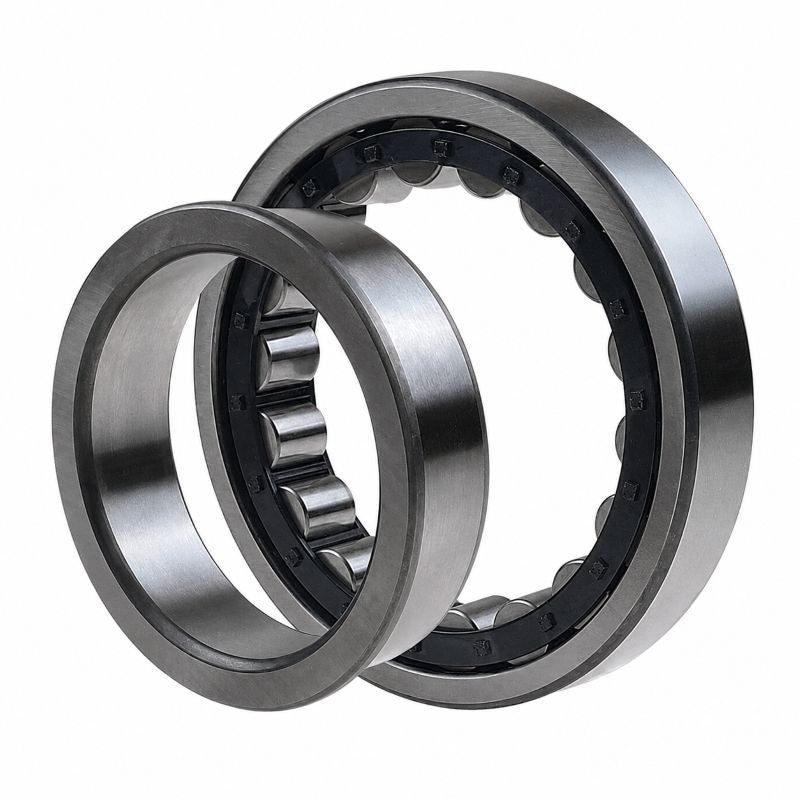

Codex NJ213 Single Row Cylindrical Roller Bearing 65x120x23mm
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
In stock
Quantity Price Breaks
10
€73.51
19
€69.38
29
€68.55
39
€67.72
49
€66.90
74
€66.07
99
€61.94
199
€61.12
249
€60.29
499
€59.46
999
€57.81
SKU:
NJ213-CDX
Codex NJ213 Single Row Cylindrical Roller Bearing 65x120x23mm
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 65mm |
| D | = | 120mm |
| B | = | 23mm |
| Dynamic load C | = | 122 kN |
| Static load Co | = | 118 kN |
| Fatigue load limit Pu | = | 15.6 kN |
| Reference speed | = | 6300 rpm |
| Limiting speed | = | 6700 rpm |
| Weight | = | 1.07 kg |
| Cage options | = | J.M.ML |
| d1 | = | 84.4mm |
| D1 | = | 104mm |
| F, E | = | 78.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 1.4mm |
| da min | = | 74mm |
| da max | = | 76mm |
| db min | = | 87mm |
| Da max | = | 111mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.15 |
| Angle ring | = | HJ213EC |
| Angle ring weight | = | 0.12kg |
| B1 | = | 6mm |
| B2 | = | 10mm |
