SKU: NJ215-CDX

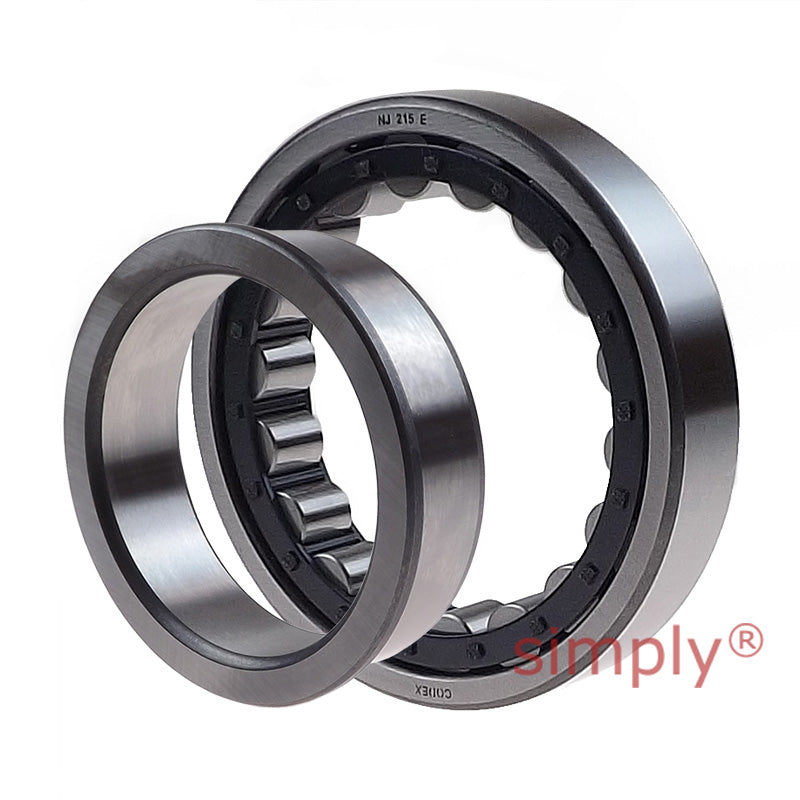

Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
- Regular price
- €113.46 ex VAT
- Sale price
- €113,46
- Regular price
-
In stock
Quantity Price Breaks
10
€100.98
19
€95.31
29
€94.17
39
€93.04
49
€91.90
74
€90.77
99
€85.10
199
€83.96
249
€82.83
499
€81.69
999
€79.42
SKU:
NJ215-CDX
Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
- Regular price
- €113.46 ex VAT
- Sale price
- €113,46
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 75mm |
| D | = | 130mm |
| B | = | 25mm |
| Dynamic load C | = | 150 kN |
| Static load Co | = | 156 kN |
| Fatigue load limit Pu | = | 20.4 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 1.3 kg |
| Cage options | = | J.M.ML |
| d1 | = | 94.3mm |
| D1 | = | 114mm |
| F, E | = | 88.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 1.2mm |
| da min | = | 84mm |
| da max | = | 86mm |
| db min | = | 97mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.15 |
| Angle ring | = | HJ215EC |
| Angle ring weight | = | 0.16kg |
| B1 | = | 7mm |
| B2 | = | 11mm |
