SKU: NJ217-CDX

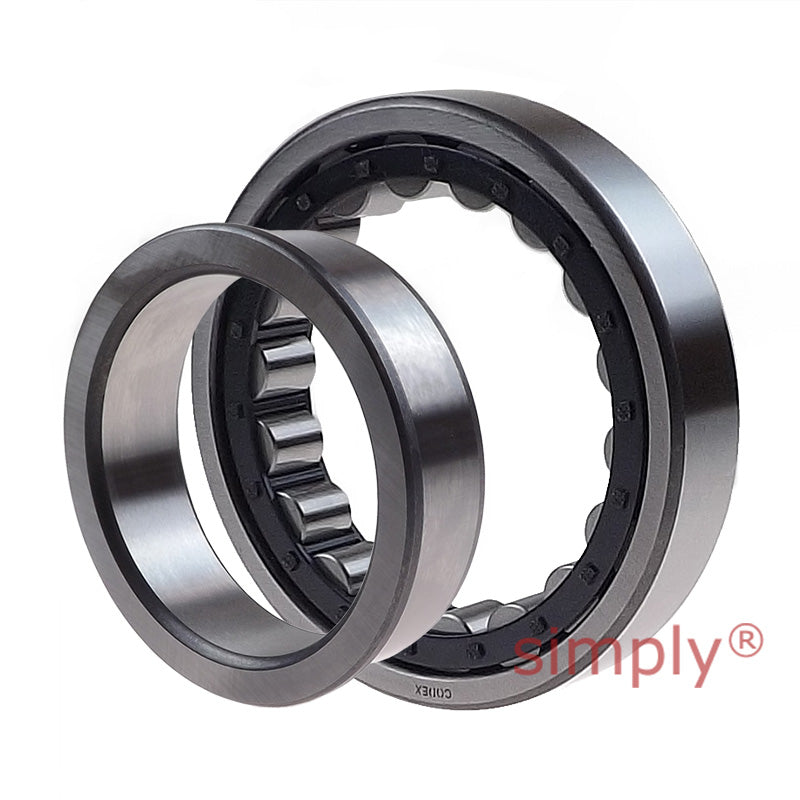

Codex NJ217 Single Row Cylindrical Roller Bearing 85x150x28mm
- Regular price
- €117.95 ex VAT
- Sale price
- €117,95
- Regular price
-
In stock
Quantity Price Breaks
10
€104.98
19
€99.08
29
€97.90
39
€96.72
49
€95.54
74
€94.36
99
€88.46
199
€87.28
249
€86.10
499
€84.92
999
€82.57
SKU:
NJ217-CDX
Codex NJ217 Single Row Cylindrical Roller Bearing 85x150x28mm
- Regular price
- €117.95 ex VAT
- Sale price
- €117,95
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 85mm |
| D | = | 150mm |
| B | = | 28mm |
| Dynamic load C | = | 190 kN |
| Static load Co | = | 200 kN |
| Fatigue load limit Pu | = | 24.5 kN |
| Reference speed | = | 4800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 1.95 kg |
| Cage options | = | J.M.ML |
| d1 | = | 107mm |
| D1 | = | 131mm |
| F, E | = | 100.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 1.5mm |
| da min | = | 96mm |
| da max | = | 98mm |
| db min | = | 110mm |
| Da max | = | 139mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ217EC |
| Angle ring weight | = | 0.24kg |
| B1 | = | 8mm |
| B2 | = | 12.5mm |
