SKU: NJ2307-CDX

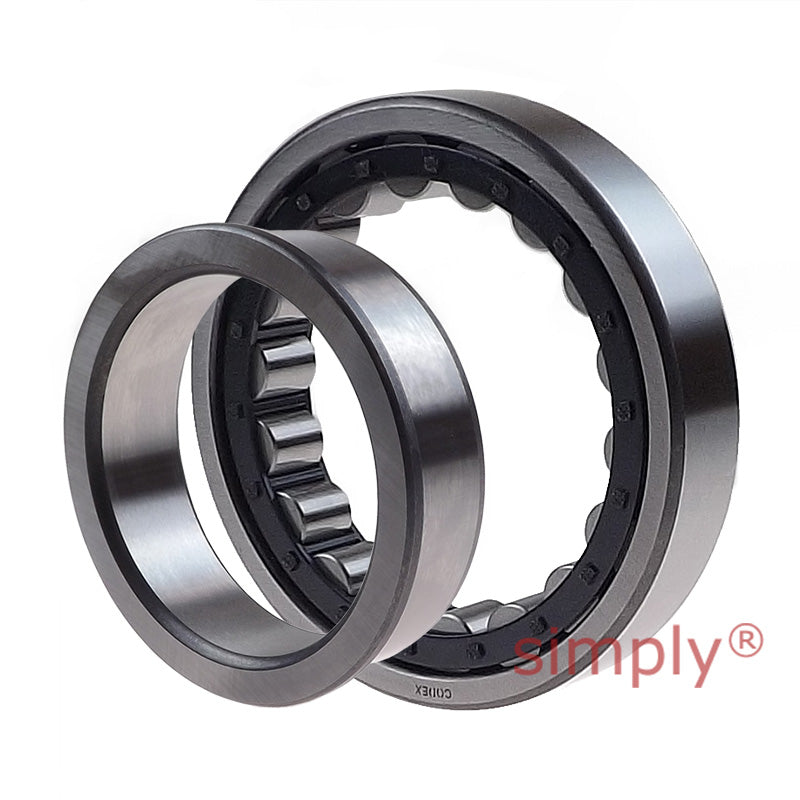

Codex NJ2307 Single Row Cylindrical Roller Bearing 35x80x31mm
- Regular price
- €55.18 ex VAT
- Sale price
- €55,18
- Regular price
-
In stock
Quantity Price Breaks
10
€49.11
19
€46.35
29
€45.80
39
€45.25
49
€44.70
74
€44.14
99
€41.39
199
€40.83
249
€40.28
499
€39.73
999
€38.63
SKU:
NJ2307-CDX
Codex NJ2307 Single Row Cylindrical Roller Bearing 35x80x31mm
- Regular price
- €55.18 ex VAT
- Sale price
- €55,18
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 35mm |
| D | = | 80mm |
| B | = | 31mm |
| Dynamic load C | = | 106 kN |
| Static load Co | = | 98 kN |
| Fatigue load limit Pu | = | 12.7 kN |
| Reference speed | = | 9500 rpm |
| Limiting speed | = | 11000 rpm |
| Weight | = | 0.73 kg |
| d1 | = | 51mm |
| D1 | = | 66.3mm |
| F, E | = | 46.2mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| s | = | 2.7mm |
| da min | = | 44mm |
| da max | = | 44mm |
| db min | = | 53mm |
| Da max | = | 71mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
| kr | = | 0.25 |
