SKU: NK10/16TN-MB

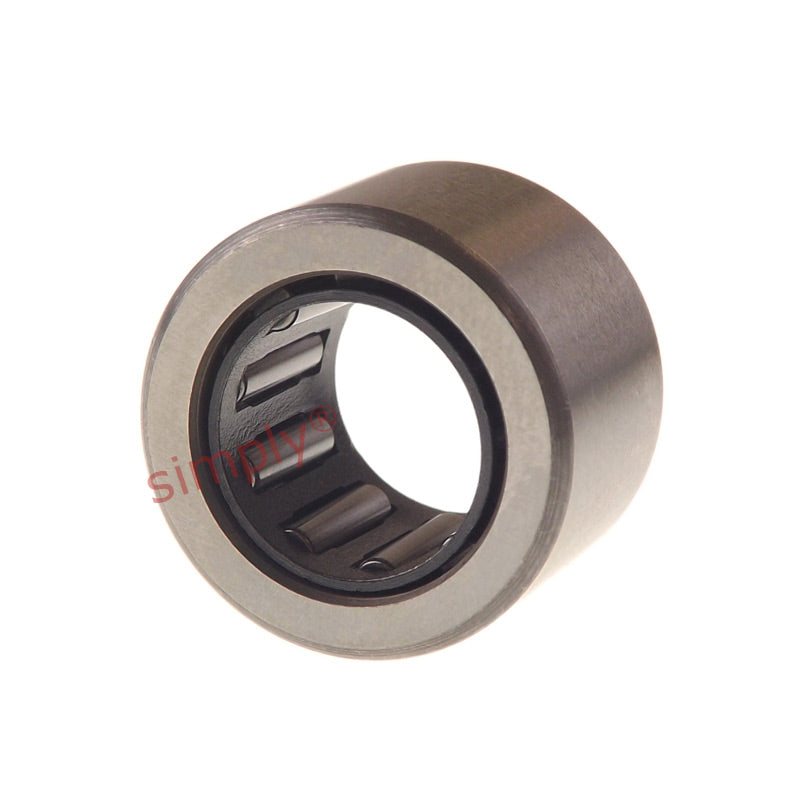

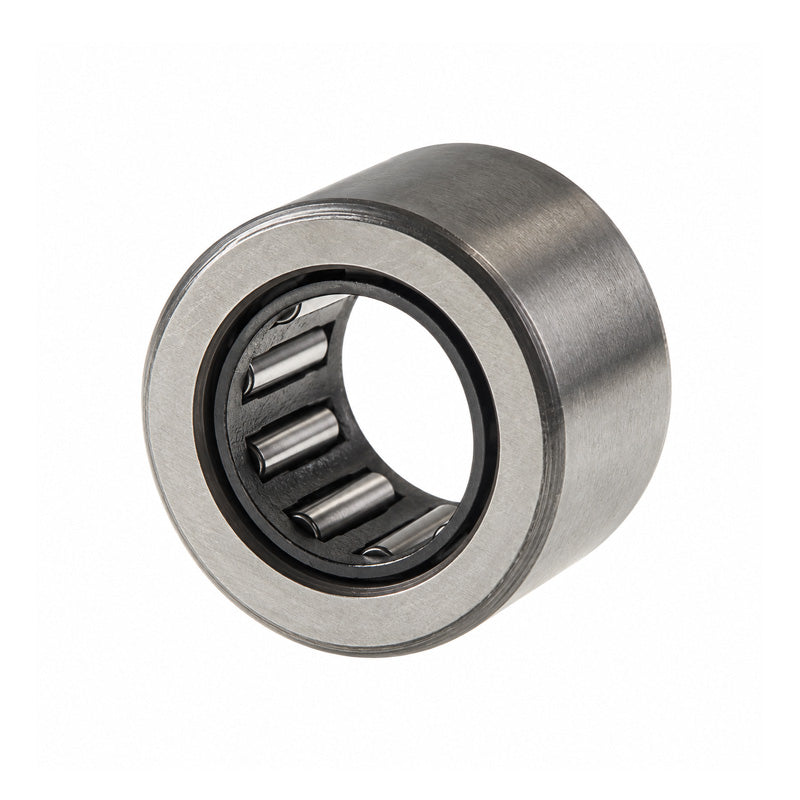

Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
- Regular price
- €10.44 ex VAT
- Sale price
- €10,44
- Regular price
-
In stock
Quantity Price Breaks
10
€9.29
19
€8.77
29
€8.67
39
€8.56
49
€8.46
74
€8.35
99
€7.83
199
€7.73
249
€7.62
499
€7.52
999
€7.31
SKU:
NK10/16TN-MB
Major Brand NK10/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x16mm
- Regular price
- €10.44 ex VAT
- Sale price
- €10,44
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 10mm |
| D | = | 17mm |
| C | = | 16mm |
| Dynamic load | = | 5940 N |
| Static load | = | 8000 N |
| Fatigue load limit Pu | = | 900 N |
| Speed in grease | = | 22000 rpm |
| Speed in oil | = | 34000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 15mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD10x17x3 |
| Weight | = | 13 g |
