SKU: NK17/20-MB

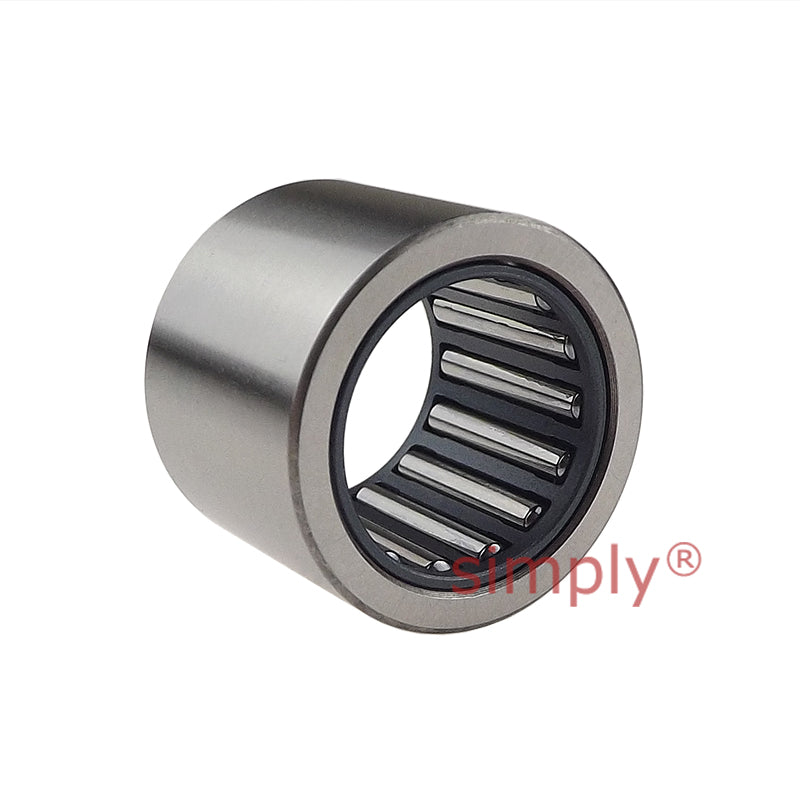

Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
- Regular price
- €19.99 ex VAT
- Sale price
- €19,99
- Regular price
-
In stock
Quantity Price Breaks
10
€17.79
19
€16.79
29
€16.59
39
€16.39
49
€16.19
74
€15.99
99
€14.99
199
€14.79
249
€14.59
499
€14.39
999
€13.99
SKU:
NK17/20-MB
Major Brand NK17/20 Needle Roller Bearing With Flanges without Shaft Sleeve 17x25x20mm
- Regular price
- €19.99 ex VAT
- Sale price
- €19,99
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 17mm |
| D | = | 25mm |
| C | = | 20mm |
| Dynamic load | = | 15100 N |
| Static load | = | 22000 N |
| Fatigue load limit Pu | = | 2750 N |
| Speed in grease | = | 15000 rpm |
| Speed in oil | = | 22000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 23mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD17x25x3 |
| Weight | = | 30 g |
