SKU: NK24/16-MB

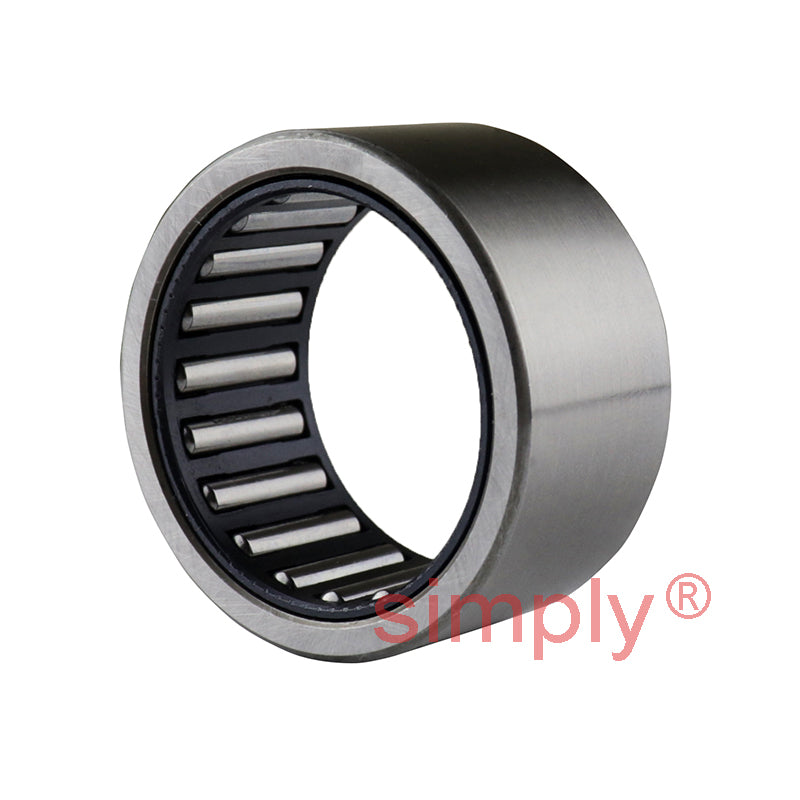

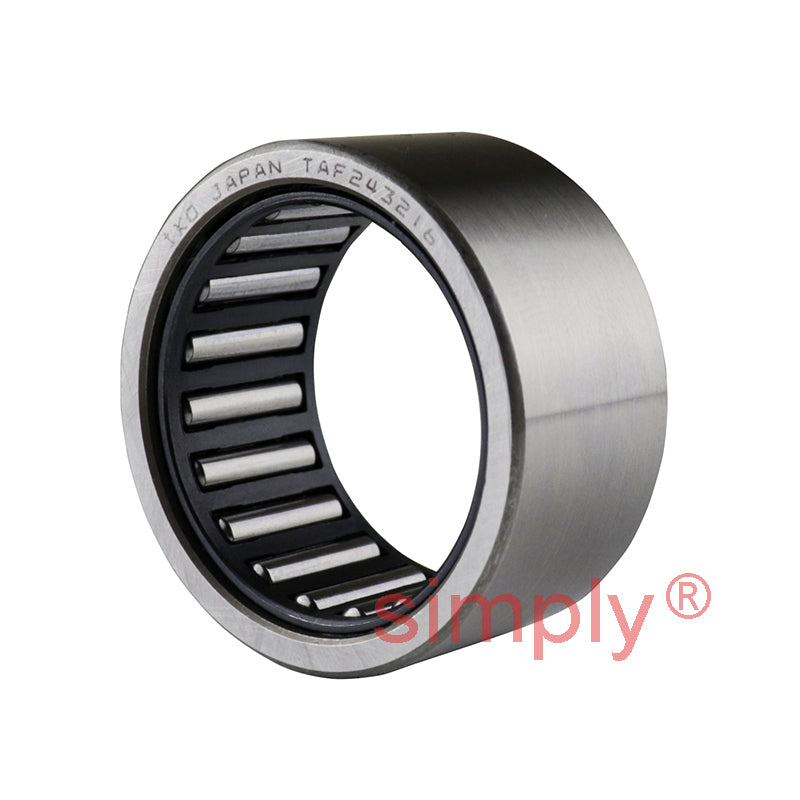

Major Brand NK24/16 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x16mm
- Regular price
- €15.57 ex VAT
- Sale price
- €15,57
- Regular price
-
In stock
Quantity Price Breaks
10
€13.86
19
€13.08
29
€12.92
39
€12.77
49
€12.61
74
€12.46
99
€11.68
199
€11.52
249
€11.37
499
€11.21
999
€10.90
SKU:
NK24/16-MB
Major Brand NK24/16 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x16mm
- Regular price
- €15.57 ex VAT
- Sale price
- €15,57
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 24mm |
| D | = | 32mm |
| C | = | 16mm |
| Dynamic load | = | 15400 N |
| Static load | = | 24500 N |
| Fatigue load limit Pu | = | 3000 N |
| Speed in grease | = | 10000 rpm |
| Speed in oil | = | 16000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 30mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD24x32x4 |
| Weight | = | 32 g |
