SKU: NK43/30-MB

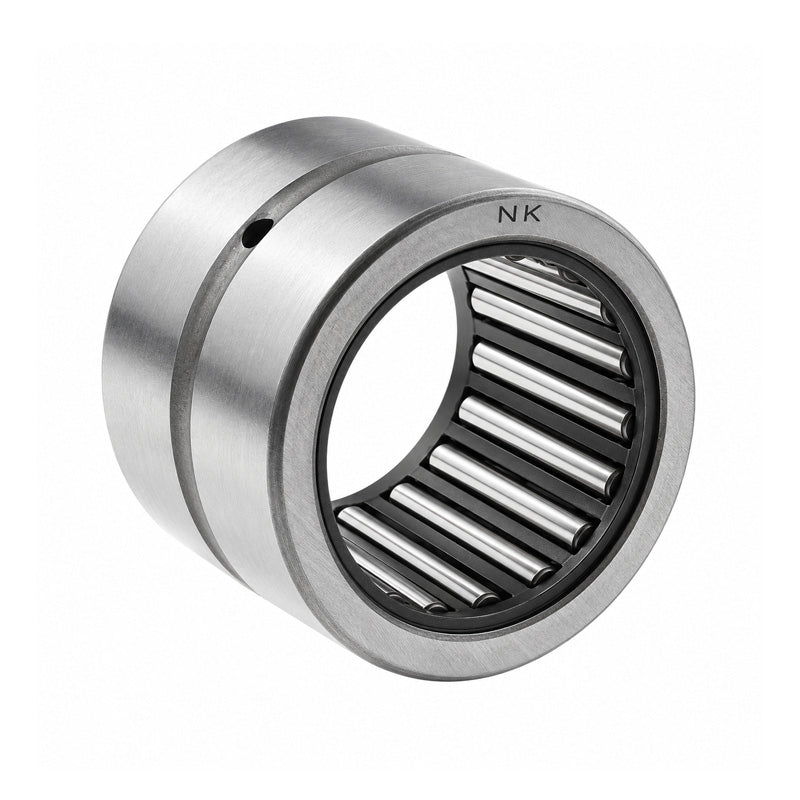

Major Brand NK43/30 Needle Roller Bearing With Flanges without Shaft Sleeve 43x53x30mm
- Regular price
- €40.03 ex VAT
- Sale price
- €40,03
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€35.63
19
€33.63
29
€33.22
39
€32.82
49
€32.42
74
€32.02
99
€30.02
199
€29.62
249
€29.22
499
€28.82
999
€28.02
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 43mm |
| D | = | 53mm |
| C | = | 30mm |
| Dynamic load | = | 40200 N |
| Static load | = | 90000 N |
| Fatigue load limit Pu | = | 11600 N |
| Speed in grease | = | 6700 rpm |
| Speed in oil | = | 9500 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 51mm |
| ra max | = | 0.3mm |
| Seal | = | G43x53x4 |
| Weight | = | 130 g |
