SKU: NK5/12TN-MB

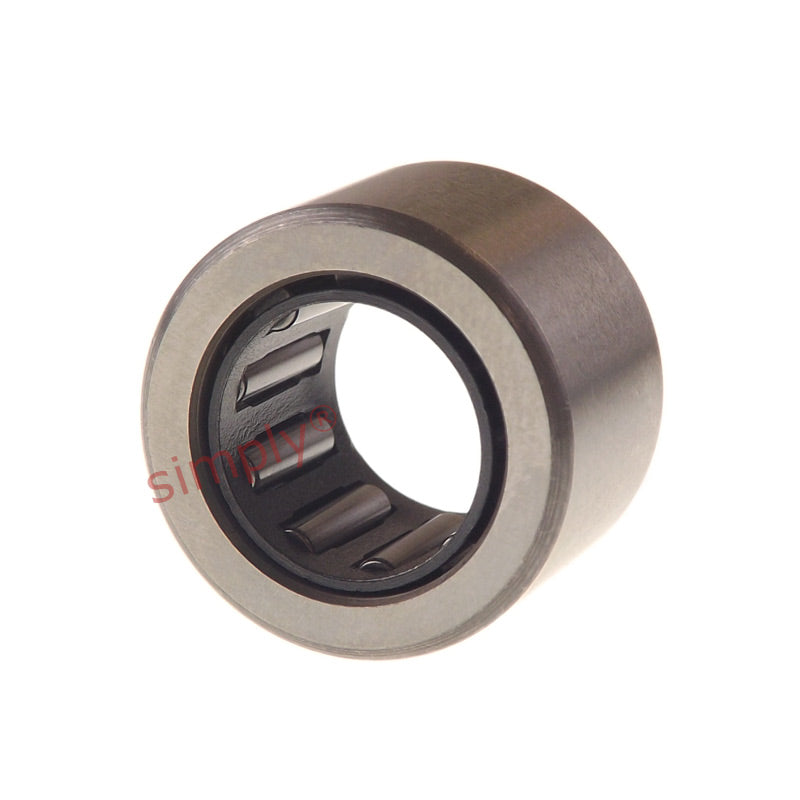

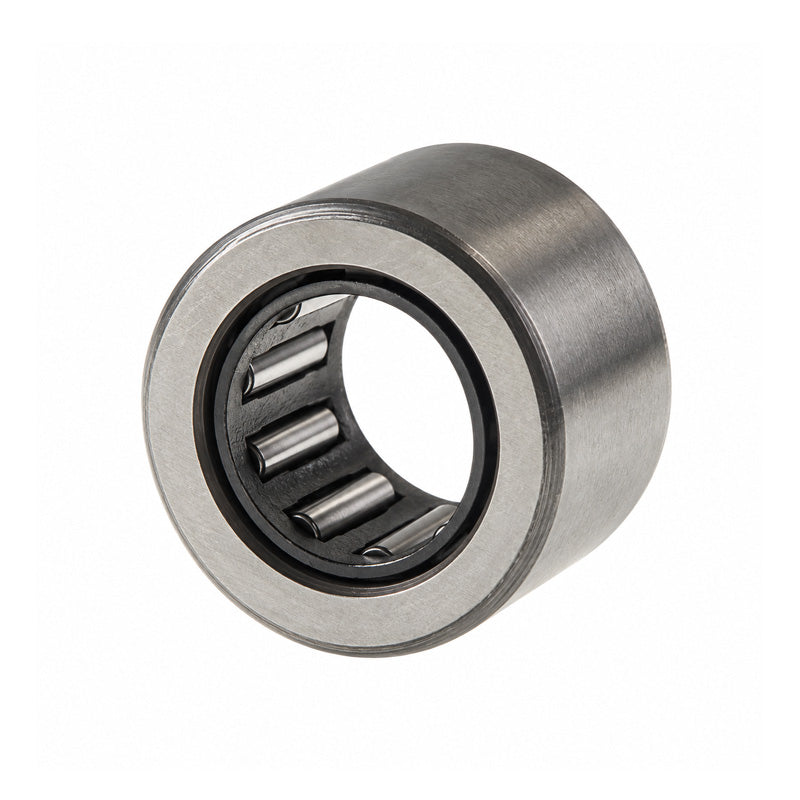

Major Brand NK5/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x12mm
- Regular price
- €9.24 ex VAT
- Sale price
- €9,24
- Regular price
-
In stock
Quantity Price Breaks
10
€8.22
19
€7.76
29
€7.67
39
€7.58
49
€7.48
74
€7.39
99
€6.93
199
€6.84
249
€6.75
499
€6.65
999
€6.47
SKU:
NK5/12TN-MB
Major Brand NK5/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x12mm
- Regular price
- €9.24 ex VAT
- Sale price
- €9,24
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 5mm |
| D | = | 10mm |
| C | = | 12mm |
| Dynamic load | = | 2920 N |
| Static load | = | 2700 N |
| Fatigue load limit Pu | = | 290 N |
| Speed in grease | = | 36000 rpm |
| Speed in oil | = | 50000 rpm |
| r1r2 | = | 0.15mm |
| Da max | = | 8.8mm |
| ra max | = | 0.1mm |
| Seal | = | G5x10x2 |
| Weight | = | 3.7 g |
