SKU: NK8/12TN-MB

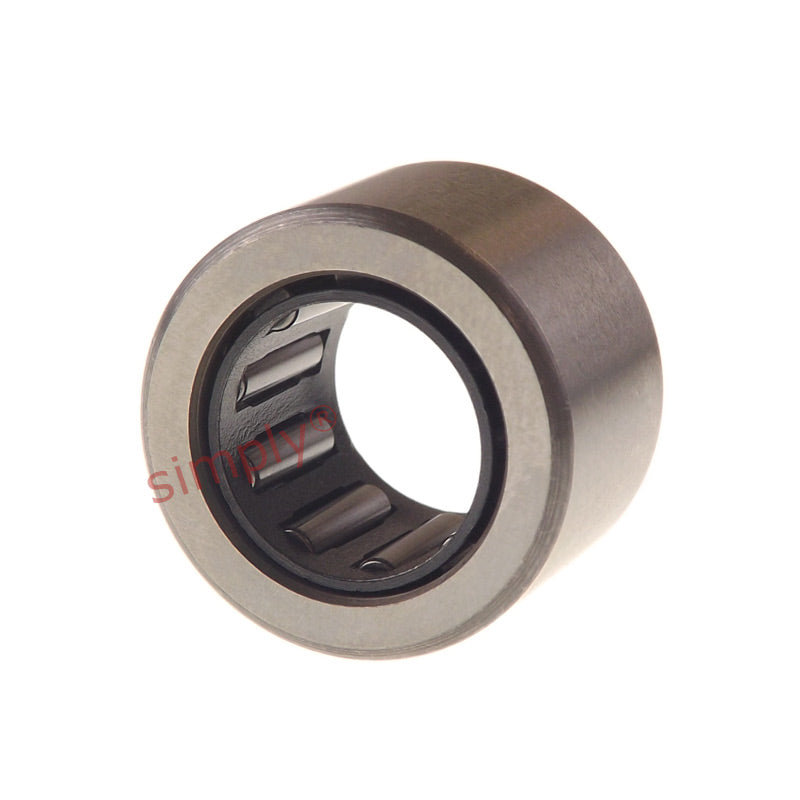

Major Brand NK8/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x12mm
- Regular price
- €9.52 ex VAT
- Sale price
- €9,52
- Regular price
-
In stock
Quantity Price Breaks
10
€8.47
19
€8.00
29
€7.90
39
€7.81
49
€7.71
74
€7.62
99
€7.14
199
€7.04
249
€6.95
499
€6.85
999
€6.66
SKU:
NK8/12TN-MB
Major Brand NK8/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x12mm
- Regular price
- €9.52 ex VAT
- Sale price
- €9,52
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 8mm |
| D | = | 15mm |
| C | = | 12mm |
| Dynamic load | = | 3800 N |
| Static load | = | 4250 N |
| Fatigue load limit Pu | = | 465 N |
| Speed in grease | = | 28000 rpm |
| Speed in oil | = | 40000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 13mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD8x15x3 |
| Weight | = | 8.7 g |
