SKU: NK8/16TN-MB

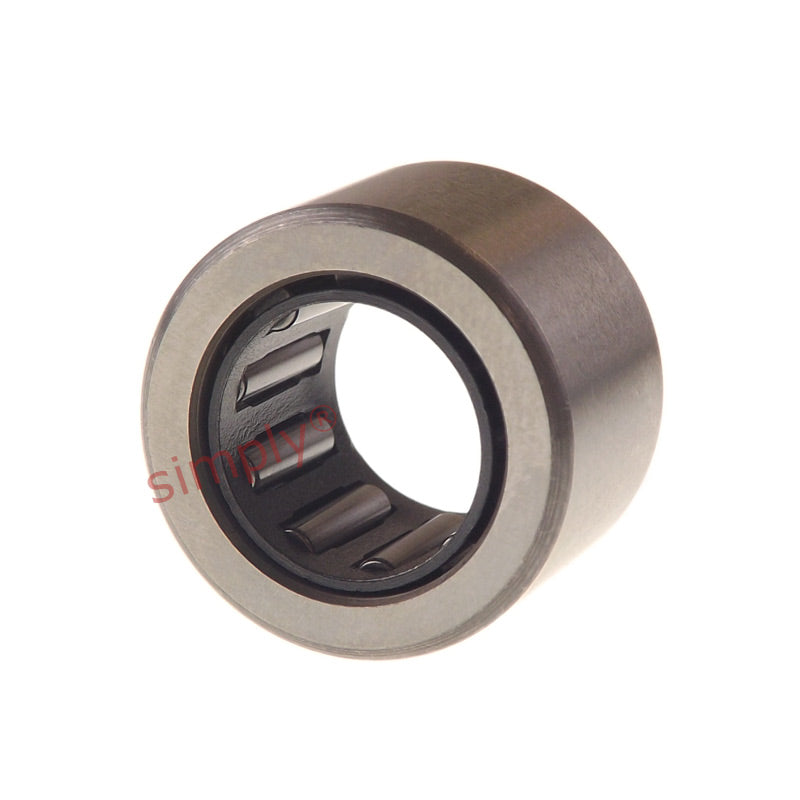

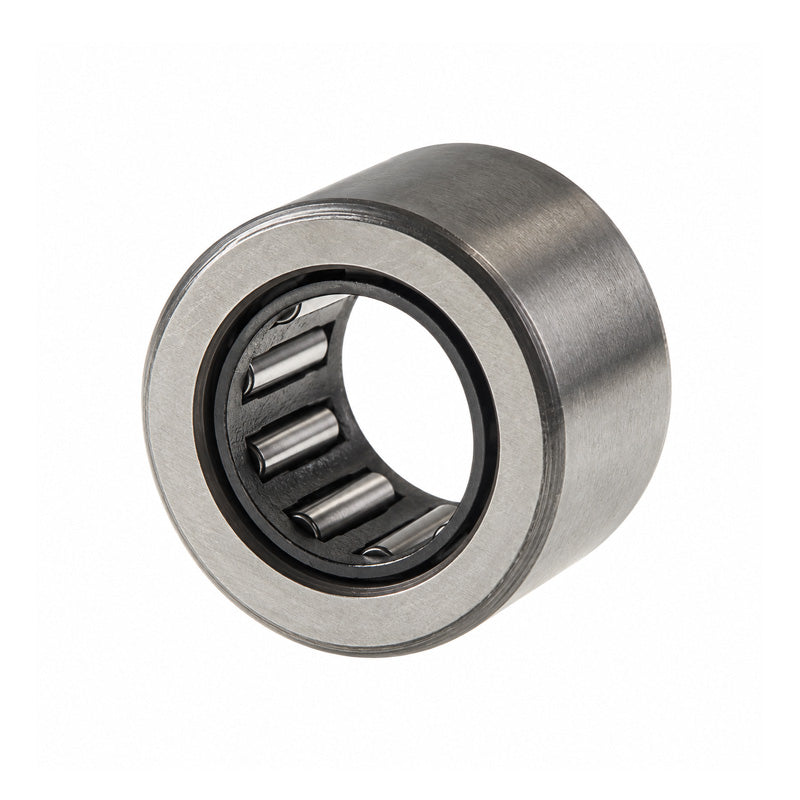

Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
- Regular price
- €10.16 ex VAT
- Sale price
- €10,16
- Regular price
-
In stock
Quantity Price Breaks
10
€9.04
19
€8.53
29
€8.43
39
€8.33
49
€8.23
74
€8.13
99
€7.62
199
€7.52
249
€7.42
499
€7.32
999
€7.11
SKU:
NK8/16TN-MB
Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
- Regular price
- €10.16 ex VAT
- Sale price
- €10,16
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 8mm |
| D | = | 15mm |
| C | = | 16mm |
| Dynamic load | = | 5010 N |
| Static load | = | 5850 N |
| Fatigue load limit Pu | = | 670 N |
| Speed in grease | = | 28000 rpm |
| Speed in oil | = | 40000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 13mm |
| ra max | = | 0.3mm |
| Seal | = | G/SD8x15x3 |
| Weight | = | 12 g |
