SKU: NK9/12TN-MB

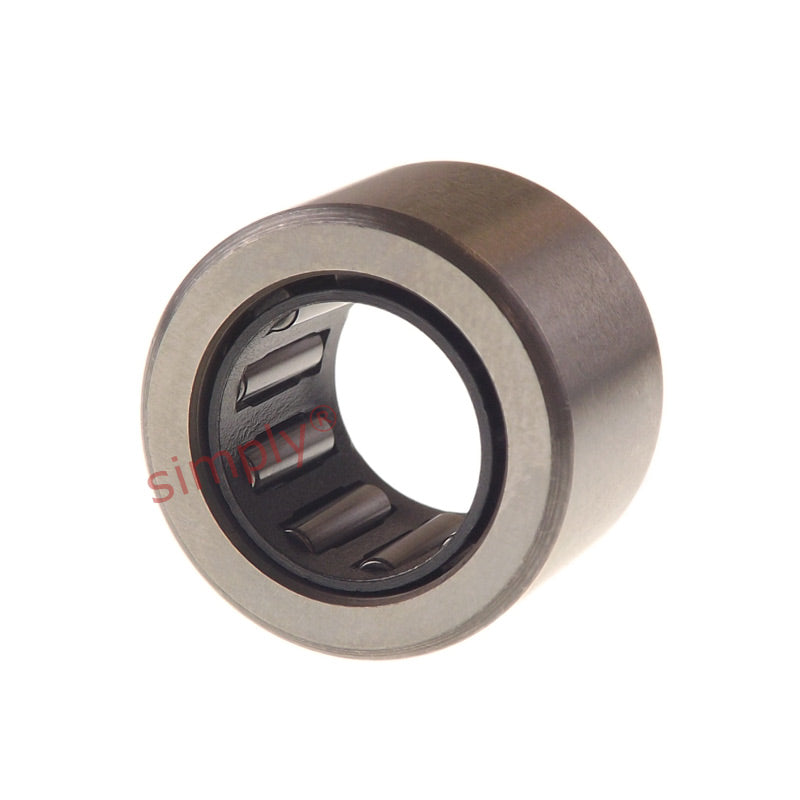

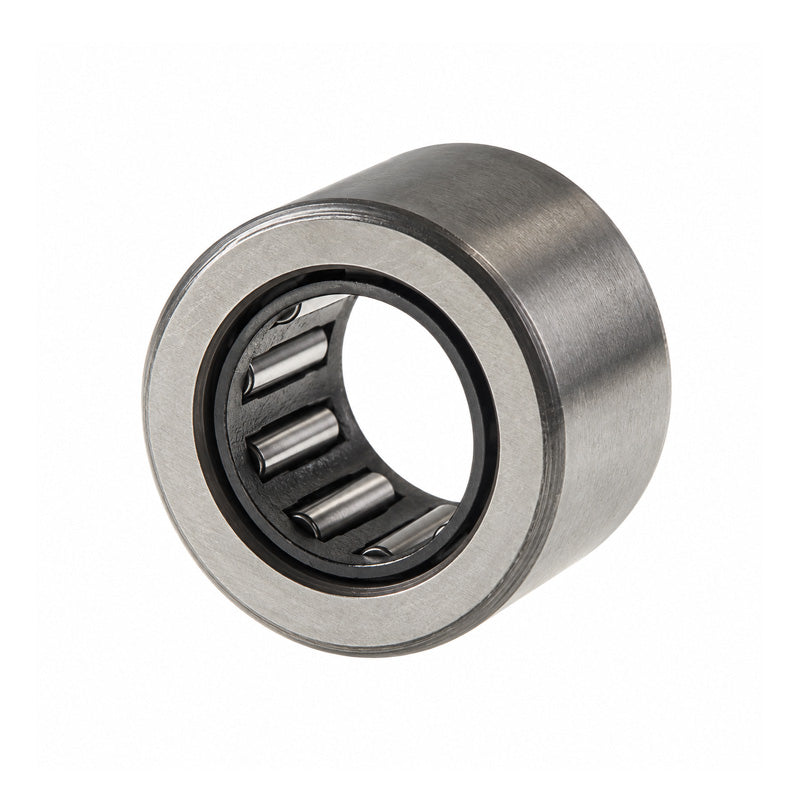

Major Brand NK9/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 9x16x12mm
- Regular price
- €14.01 ex VAT
- Sale price
- €14,01
- Regular price
-
In stock
Quantity Price Breaks
10
€12.47
19
€11.77
29
€11.63
39
€11.49
49
€11.35
74
€11.21
99
€10.51
199
€10.37
249
€10.23
499
€10.09
999
€9.81
SKU:
NK9/12TN-MB
Major Brand NK9/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 9x16x12mm
- Regular price
- €14.01 ex VAT
- Sale price
- €14,01
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Technical
| Fw | = | 9mm |
| D | = | 16mm |
| C | = | 12mm |
| Dynamic load | = | 4400 N |
| Static load | = | 5200 N |
| Fatigue load limit Pu | = | 570 N |
| Speed in grease | = | 24000 rpm |
| Speed in oil | = | 36000 rpm |
| r1r2 | = | 0.3mm |
| Da max | = | 14mm |
| ra max | = | 0.3mm |
| Seal | = | G9x16x3 |
| Weight | = | 10 g |
