SKU: NKI70/25-EU
NKI70/25 Budget Needle Roller Bearing / Shaft Sleeve 70x95x25mm
- Regular price
- €81.05 ex VAT
- Sale price
- €81,05
- Regular price
-
Not in stock
Quantity Price Breaks
10
€72.13
19
€68.08
29
€67.27
39
€66.46
49
€65.65
74
€64.84
99
€60.79
199
€59.98
249
€59.17
499
€58.36
999
€56.74
SKU:
NKI70/25-EU
NKI70/25 Budget Needle Roller Bearing / Shaft Sleeve 70x95x25mm
- Regular price
- €81.05 ex VAT
- Sale price
- €81,05
- Regular price
-
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |

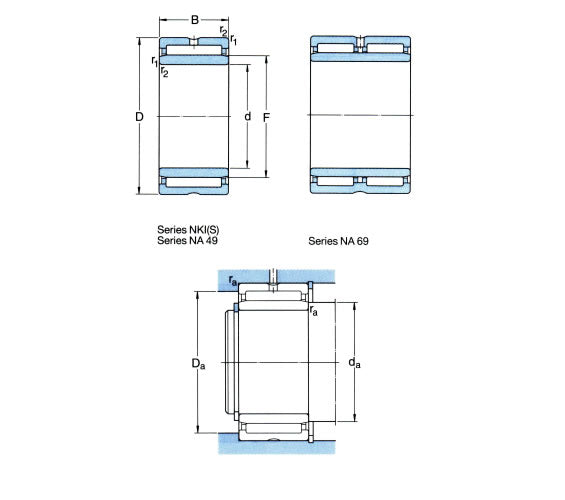

Technical
| d | = | 70mm |
| D | = | 95mm |
| B | = | 25mm |
| Dynamic load C | = | 56100 N |
| Static load Co | = | 127000 N |
| Fatigue load limit Pu | = | 16000 N |
| Speed in grease | = | 3600 rpm |
| Speed in oil | = | 5000 rpm |
| F | = | 80mm |
| r1r2 | = | 1mm |
| S (axial disp) | = | 0.8mm |
| da min | = | 75mm |
| Da max | = | 90mm |
| ra max | = | 1mm |
