SKU: NKIS17-MB

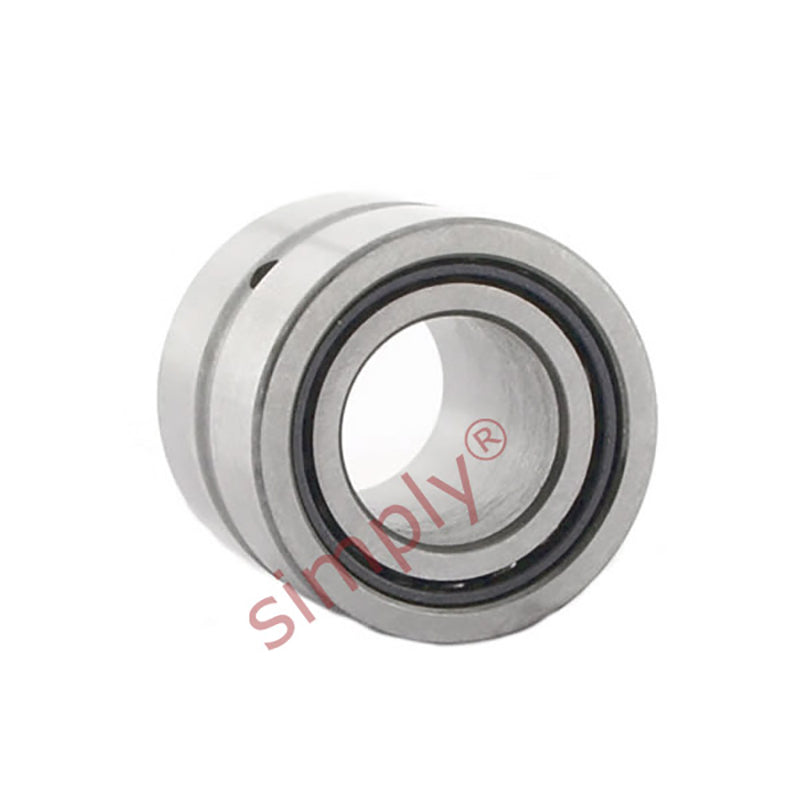

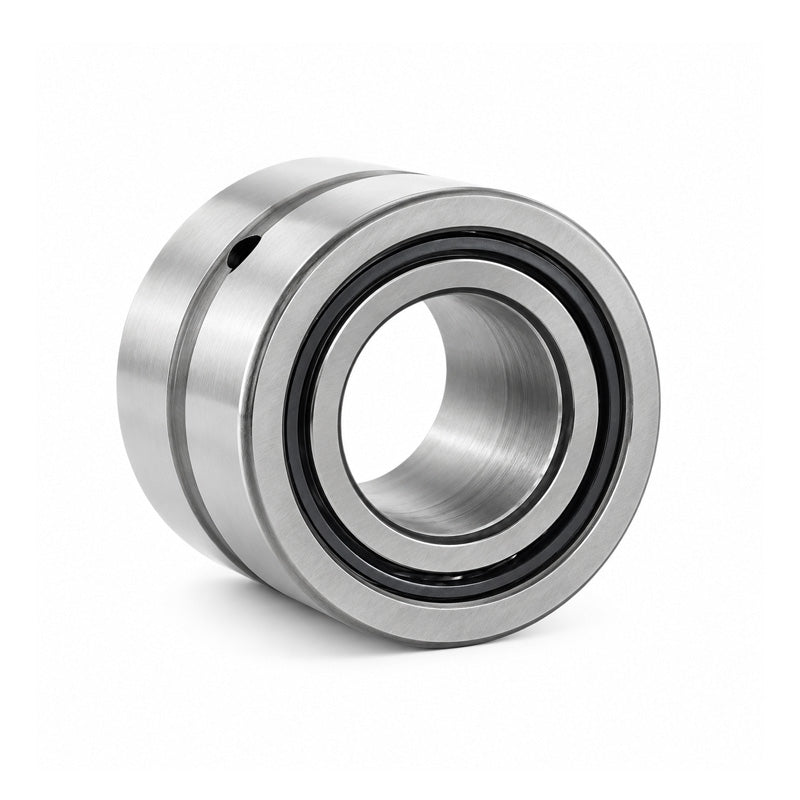

Major Brand NKIS17 Needle Roller Bearing With Shaft Sleeve 17x37x20mm
- Regular price
- €48.44 ex VAT
- Sale price
- €48,44
- Regular price
-
In stock
Quantity Price Breaks
10
€43.11
19
€40.69
29
€40.21
39
€39.72
49
€39.24
74
€38.75
99
€36.33
199
€35.85
249
€35.36
499
€34.88
999
€33.91
SKU:
NKIS17-MB
Major Brand NKIS17 Needle Roller Bearing With Shaft Sleeve 17x37x20mm
- Regular price
- €48.44 ex VAT
- Sale price
- €48,44
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |

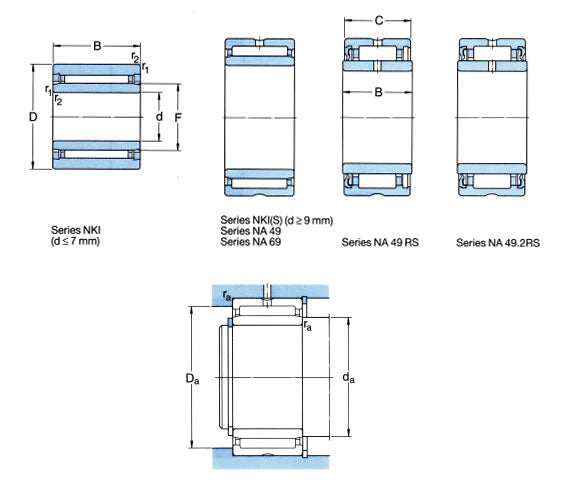

Technical
| d | = | 17mm |
| D | = | 37mm |
| B | = | 20mm |
| Dynamic load | = | 26000 N |
| Static load | = | 33500 N |
| Fatigue load limit Pu | = | 4250 N |
| Speed in grease | = | 9500 rpm |
| Speed in oil | = | 15000 rpm |
| F | = | 24mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 21mm |
| Da max | = | 33mm |
| ra max | = | 0.6mm |
